8.24.1 Trace collection points of JavaMail transmission and the trace information that you can collect

Organization of this subsection
(1) Trace collection points and PRF trace collection levels
(2) Trace information that you can collect

(1) Trace collection points and PRF trace collection levels

The following table describes the information such as Event ID, trace collection points, and PRF trace collection level.

Table 8-161 Details of trace collection points on JavaMail transmission

Event ID Numbers used in the figures#1 Trace collection point Level
0xAD00 1 Entry point of the connect(String host, int port, String user, String password) method of the javax.mail.Transport class A
0xAD01 22 Exit point of the connect(String host, int port, String user, String password) method of the javax.mail.Transport class A
0xAD02 23 Entry point of the sendMessage(Message message, Address[] addresses) method of the javax.mail.Transport class A
0xAD03 38 Exit point of the sendMessage(Message message, Address[] addresses) method of the javax.mail.Transport class A
0xAD04 39 Entry point of the close method of the javax.mail.Transport class A
0xAD05 44 Exit point of the close method of the javax.mail.Transport class A
0xAD06 2 Immediately before starting the process to fetch the connection A
0xAD07 3 Immediately after ending the process to fetch the connection A
0xAD08 26#2 Immediately before starting to send the entire recipient information A
0xAD09 29#2 Immediately after sending the entire recipient information A
0xAD0A 34#3 Immediately before starting to send the mail A
0xAD0B 35#3 Immediately after sending the mail A
0xAD0C 42 Immediately before starting the process to terminate the connection B
6 Immediately before starting the process to terminate the connection B
0xAD0D 43 Immediately after ending the process to terminate the connection B
7 Immediately after ending the process to terminate the connection B
0xAD0E 45 Entry point of the send(Message msg, Address[] addresses) method and send(Message msg) method of the javax.mail.Transport class A
0xAD0F 46 Exit point of the send(Message msg, Address[] addresses) method and send(Message msg) method of the javax.mail.Transport class A
0xAD10 8#4 Immediately before issuing the EHLO or HELO command A
0xAD11 9#4 Immediately after receiving a response to the EHELO or HELO command A
0xAD12 10 Immediately before issuing the AUTH command B
14 Immediately before starting to send the user name and password B
16 Immediately before starting to notify the end of authentication B
18 Immediately before starting to send the user name B
20 Immediately before starting to send the password B
24 Immediately before starting to issue the MAIL command B
27#5 Immediately before starting to issue the RCPT command B
30 Immediately before starting to issue the RSET command B
32 Immediately before starting to issue the DATA command B
36 Immediately before starting to issue the notification for the end of mail text transmission B
40 Immediately before starting to issue the QUIT command B
47#6 Immediately after receiving a response to the NOOP command B
12 Immediately after starting to issue the STARTTLS command B
0xAD13 11 Immediately after receiving a response to AUTH B
15 Immediately after receiving a response to the sent user name and password B
17 Immediately after notifying the end of authentication B
19 Immediately after receiving a response to the sent user name B
21 Immediately after receiving a response to the sent password B
25 Immediately after receiving a response to the MAIL command B
28#5 Immediately after receiving a response to the RCPT command B
31 Immediately after receiving a response to the RSET command B
33 Immediately after receiving a response to the DATA command B
37 Immediately after receiving a response to the notification for the end of mail text transmission B
41 Immediately after receiving a response to the QUIT command B
48#6 Immediately before starting to issue the NOOP command B
13 Immediately after receiving a response to the STARTTLS command B
0xAD14 4 Immediately before receiving the server response on connection B
0xAD15 5 Immediately after receiving the server response on connection B

Legend:
A: Standard
B: Detail

#1
Corresponds to the numbers used in Figure 8-101, Figure 8-102, or Figure 8-103.

#2
Fetched at the start and end of sending the entire recipient information.

#3
The data to be sent is read and sent to the mail server in the data transfer described in the Trace collection point column of point 32 or 33. For example, if a file is attached, the file is read and the data of the file is sent to the mail server.

#4
Sometimes 1 log each for EHLO and HELO is output, because if EHLO fails, the reconnection is tried by issuing HELO.

#5
Fetched at the start and end of sending the individual recipient information.

#6
Fetched only when connected with the server.

The following figure shows the trace collection points on JavaMail transmission.

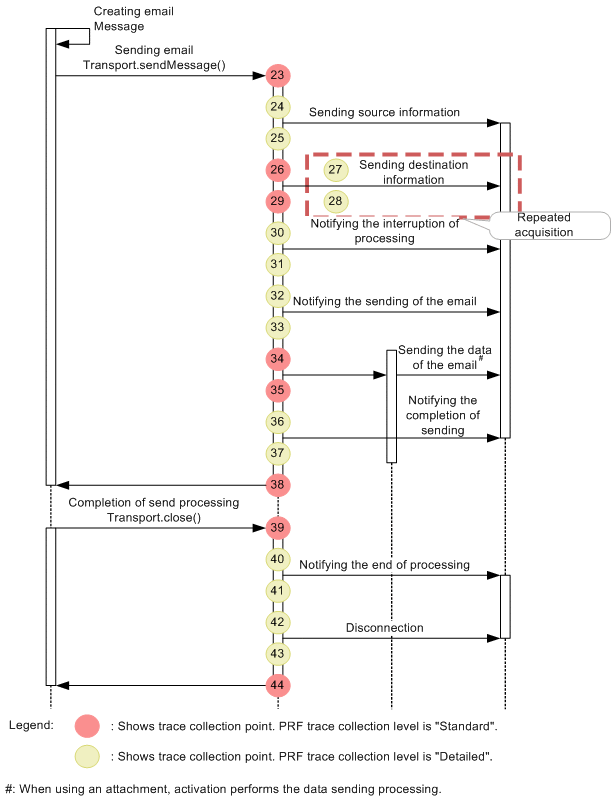

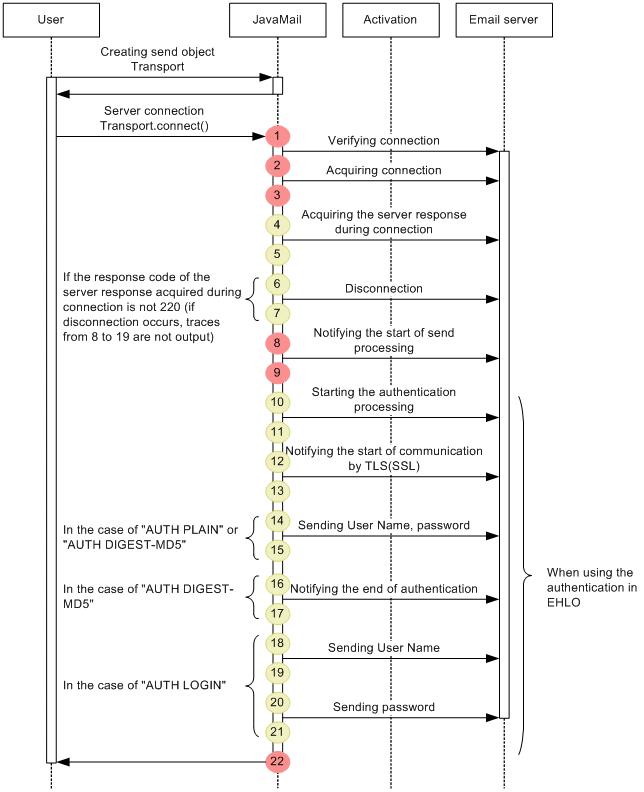

Figure 8-101 Trace collection points on JavaMail transmission (when the sendMessage(Message message, Address[] addresses) method of the javax.mail.Transport class is used)

[Figure]

[Figure]

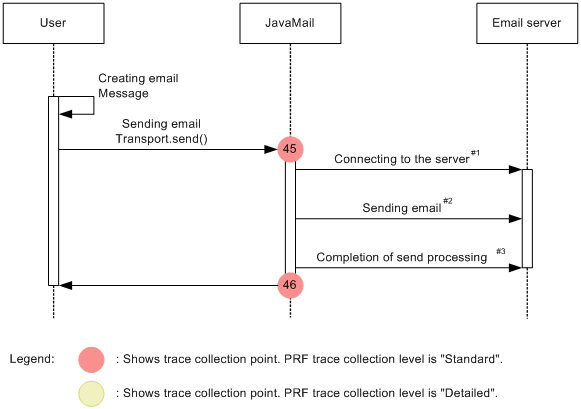

Figure 8-102 Trace collection points on JavaMail transmission (when the send(Message msg, Address[] addresses) method and send(Message msg) method of the javax.mail.Transport class are used)

[Figure]

#1: The connect method of the javax.mail.Transport class is invoked internally, so the collection points from 1 to 20, shown in Figure 8-101, are also output.

#2: The sendMessage method of the javax.mail.Transport class is invoked internally, so the collection points from 21 to 36, shown in Figure 8-101, are also output.

#3: The close method of the javax.mail.Transport class is invoked internally, so the collection points from 37 to 42, shown in Figure 8-101, are also output.

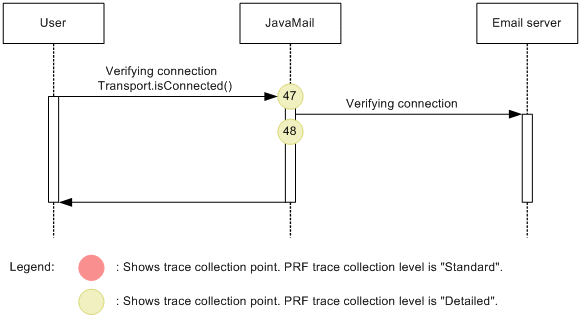

Figure 8-103 Trace collection point on confirming the JavaMail connection

[Figure]

(2) Trace information that you can collect

The following table describes the trace information that you can collect on JavaMail transmission.

Table 8-162 Trace information that you can collect on JavaMail transmission

Numbers used in the figures#1 Event ID Level Interface name Operation name Option
1 0xAD00 A -- -- --
2 0xAD06 A -- -- #2
3 0xAD07 A -- -- Exception class name in the event of an abnormality
4 0xAD14 B String that shows communication#3 -- --
5 0xAD15 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
6 0xAD0C B -- -- --
7 0xAD0D B -- -- Exception class name in the event of an abnormality
8 0xAD10 A String that shows communication#3 -- --
9 0xAD11 A String that shows communication#3 Response code from the mail server#4, #6 Exception class name in the event of an abnormality#7
10 0xAD12 B String that shows communication#3 -- --
11 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
12 0xAD12 B String that shows communication #3 -- --
13 0xAD13 B String that shows communication #3 Response code from the mail server #4, #5, #6 Name of the exception class if an error occurs #7
14 0xAD12 B String that shows communication#3 -- --
15 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
16 0xAD12 B String that shows communication#3 -- --
17 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
18 0xAD12 B String that shows communication#3 -- --
19 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
20 0xAD12 B String that shows communication#3 -- --
21 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
22 0xAD01 A -- -- Exception class name in the event of an abnormality
23 0xAD02 A -- -- --
24 0xAD12 B String that shows communication#3 -- --
25 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
26 0xAD08 A -- -- --
27 0xAD12 B String that shows communication#3 -- --
28 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
29 0xAD09 A -- -- Exception class name in the event of an abnormality
30 0xAD12 B String that shows communication#3 -- --
31 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
31 0xAD12 B String that shows communication#3 -- --
32 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
33 0xAD0A A -- -- --
34 0xAD0B A -- -- Exception class name in the event of an abnormality
35 0xAD12 B String that shows communication#3 -- --
36 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
37 0xAD03 A -- -- Exception class name in the event of an abnormality
38 0xAD04 A -- -- --
39 0xAD12 B String that shows communication#3 -- --
40 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7
41 0xAD0C B -- -- --
42 0xAD0D B - - Exception class name in the event of an abnormality
43 0xAD05 A -- -- Exception class name in the event of an abnormality
44 0xAD0E A Method name (send(Message, Address[]) or send(Message)) -- --
45 0xAD0F A Method name (send(Message, Address[]) or send(Message)) -- Exception class name in the event of an abnormality
46 0xAD12 B String that shows communication#3 -- --
47 0xAD13 B String that shows communication#3 Response code from the mail server#4, #5, #6 Exception class name in the event of an abnormality#7

Legend:
A: Standard
B: Detail
-: Not applicable

#1
Corresponds to the numbers used in Figure 8-101, Figure 8-102, or Figure 8-103.

#2
Outputs the following items:
Timeout value for fetching host name, port number, and connection. Communication timeout value.
Each of the items must be output by separating them with a single byte space.
0 is output, if the timeout is set to infinite. -1 is output, if the user omits the timeout setting.
(Example) localhost 25 10000 10000

#3
The following table describes the output contents of the strings that show communication:

Sr. No. String that shows communication Communication process
1 -- (Not applicable) Fetch connection
2 connect-mail-server Fetch server response on connection
3 EHLO command arguments Issue EHLO command
4 HELO command arguments Issue HELO command
5 AUTH LOGIN Issue AUTH command
(LOGIN as argument)
6 AUTH PLAIN Issue AUTH command
(PLAN as argument)
7 AUTH DIGEST-MD5 Issue AUTH command
(DIGEST-MD5 as argument)
8 SEND USER Send user name
9 SEND PASS Send password
10 SEND USER PASS Send user name and password
11 AUTH END Notify authentication end
12 QUIT Issue QUIT command
13 MAIL command arguments Issue MAIL command
14 RCPT command arguments Issue RCPT command
15 RSET Issue RSET command
16 NOOP Issue NOOP command
17 DATA Issue DATA command
18 SEND MAIL Send mail body data
19 . Notifying the end of the mail text transmission
20 STARTTLS Issuing the STARTTLS command

#4
The following table describes the output contents of responses:

Response Output contents
Response code is correct (satisfies the RFC specifications) Response code
Response code is incorrect (does not satisfy the RFC specifications) Header 4 letters of the 1st line of the response (See KDJE59111-E message for details)
  • If the 1st line is less than 4 letters
    Output all the letters that exist in the 1st line
  • No response
    Output empty string

#5
In the QUIT command, response code is output only if mail.smtp.quitwait or mail.smtps.quitwait is true.

#6
Response code is output only if the response is received. Response code is not output, if the response is not received due to the abnormal conditions such as occurrence of IOException in communication.

#7
If the response code does not satisfy the RFC specifications and if EOF is detected, the exception class is not output.
