The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-149 Details of the trace collection points in the JMS ConnectionFactory interface

Event ID	Number in the figure#	Trace collection point	Level
0xA600	1	When the processing of ConnectionFactory.createConnection() starts	A
0xA601	4	When the processing of ConnectionFactory.createConnection() ends	A
0xA602	1	When the processing of ConnectionFactory.createConnection(uname,pwd) starts	A
0xA603	4	When the processing of ConnectionFactory.createConnection(uname,pwd) ends	A
0xA604	1	When the processing of QueueConnectionFactory.createQueueConnection()starts	A
0xA605	4	When the processing of QueueConnectionFactory.createQueueConnection()ends	A
0xA606	1	When the processing of QueueConnectionFactory.createQueueConnection(uname,pwd) starts	A
0xA607	4	When the processing of QueueConnectionFactory.createQueueConnection(uname,pwd) ends	A
0xA608	1	When the processing of TopicConnectionFactory.createTopicConnection() starts	A
0xA609	4	When the processing of TopicConnectionFactory.createTopicConnection() ends	A
0xA60A	1	When the processing of TopicConnectionFactory.createTopicConnection(uname,pwd) starts	A
0xA60B	4	When the processing of TopicConnectionFactory.createTopicConnection(uname,pwd) ends	A
0xA60C	2	When the processing of ManagedConnectionFactory.matchManagedConnections() starts	B
0xA60D	3	When the processing of ManagedConnectionFactory.matchManagedConnections() ends	B

Legend:

A: Standard

B: Advanced

#

Corresponds to the numbers in Figure 8-93.

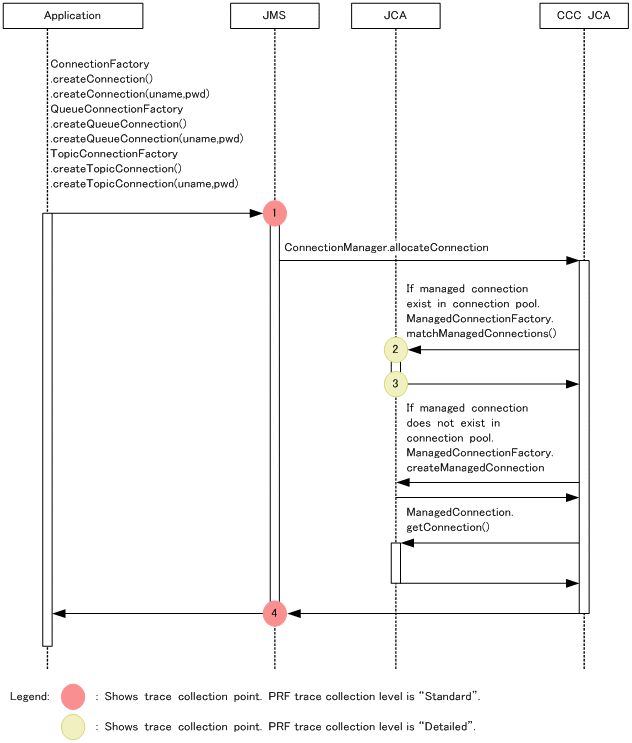

The following figure shows the trace collection points of the JMS ConnectionFactory interface.

Figure 8-93 Trace collection points in JMS ConnectionFactory interface

Trace information (interface name, operation name, and option) cannot be collected for the JMS ConnectionFactory interface.
