The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-127 Details of trace collection points for javax.persistence.EntityManagerFactory
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0xA300 | 1 | When the processing of EntityManagerFactory#createEntityManager() starts | B |
| 0xA301 | 2 | When the processing of EntityManagerFactory#createEntityManager() ends | B |
| 0xA302 | 1 | When the processing of EntityManagerFactory#createEntityManager(Map) starts | B |
| 0xA303 | 2 | When the processing of EntityManagerFactory#createEntityManager(Map) ends | B |

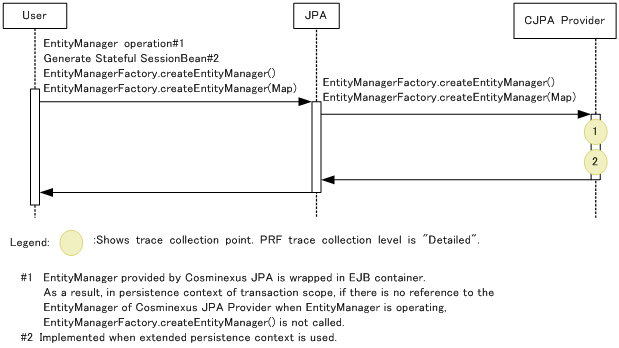

The following figure shows the trace collection points.
Figure 8-77 Trace collection points for javax.persistence.EntityManagerFactory
![[Figure]](FIGURE/ZU076000.GIF)
The following table describes the trace information that can be collected during the acquisition processing of EntityManager.
Table 8-128 Trace information that can be collected for javax.persistence.EntityManagerFactory
| No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0xA300 | B | -- | -- | -- |
| 0xA302 | B | -- | -- | -- | |
| 2 | 0xA301 | B | -- | -- | #2 |
| 0xA303 | B | -- | -- | #2 | |
