uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-125 Details of trace collection points during the acquisition or release processing of EntityManagerFactory
Event ID | No. in the figure#1 | Trace acquisition points | Level |
---|---|---|---|
0xA304#2 | 3 | When the processing of EntityManagerFactory#close() starts | B |
0xA305#2 | 4 | When the processing of EntityManagerFactory#close() ends | B |
0xA320#3 | 1 | When the processing of PersistenceProvider#createEntityManagerFactory(String, Map) starts | A |
0xA321#3 | 2 | When the processing of PersistenceProvider#createEntityManagerFactory(String, Map) ends | A |
0xA322#3 | 1 | When the processing of PersistenceProvider#createContainerEntityManagerFactory(PersistenceUnitInfo, Map) starts | A |
0xA323#3 | 2 | When the processing of PersistenceProvider#createContainerEntityManagerFactory(PersistenceUnitInfo, Map) ends | A |
The following figure shows the trace collection points.

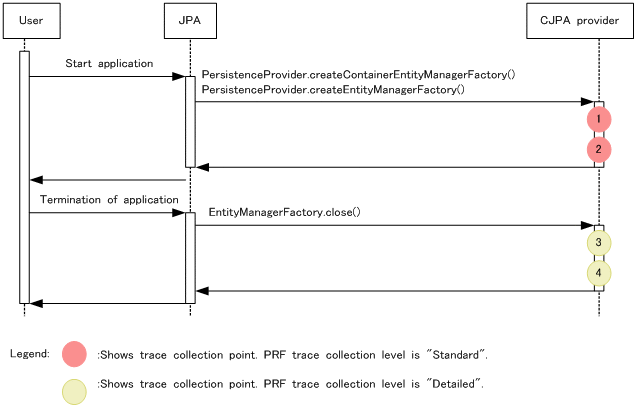

Figure 8-76 Trace collection points of the acquisition or release processing of EntityManagerFactory
The following table describes the trace information that can be collected during the acquisition or release processing of EntityManagerFactory.
Table 8-126 Trace information that can be collected during the acquisition or release processing of EntityManagerEntityFactory
No. in the figure#1 | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1#2 | 0xA320#3 | A | -- | -- | -- |
0xA322 | A | -- | -- | -- | |
2#2 | 0xA321#3 | A | -- | -- | #4 |
0xA323 | A | -- | -- | #4 | |
3#5 | 0xA304 | B | -- | -- | -- |
4#5 | 0xA305 | B | -- | -- | #4 |
