The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-109 Details of trace collection points of the user log
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0x9C02 | 1 | When message output using the user log starts | B |
| 0x9C03 | 2 | When message output using the user log is complete | B |
The following figure shows the trace collection points of the user log.

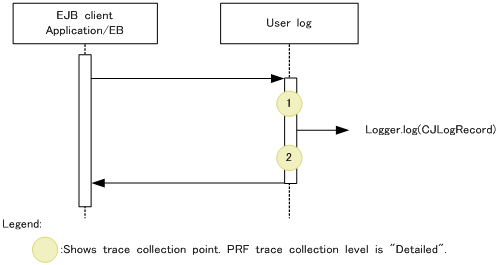

Figure 8-68 Trace collection points of the user log
![[Figure]](FIGURE/ZU074500.GIF)
The following table describes the trace information that can be collected in the user log.
Table 8-110 Trace information that can be collected in the user log
| No. in the figure# | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0x9C02 | B | Application distinguished name | Message ID | -- |
| 2 | 0x9C03 | B | Application distinguished name | Message ID | -- |
