The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-107 Details of trace collection points in the case of standard output or standard error output
Event ID | No. in the figure# | Trace acquisition points | Level |
---|---|---|---|
0x9C00 | 1 | When the output to standard output or standard error output starts | B |
0x9C01 | 2 | When the output to standard output or standard error output is complete | B |
The following figure shows the trace collection points in the case of standard output or standard error output.

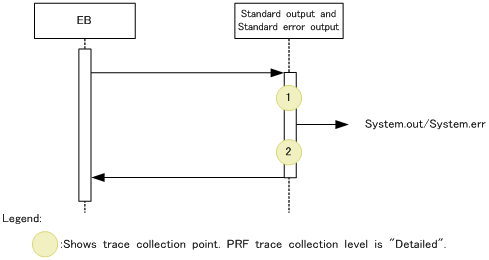

Figure 8-67 Trace collection points of standard output or standard error output
The following table describes the trace information that can be collected in the case of standard output or standard error output.
Table 8-108 Trace information that can be collected in the case of standard output or standard error output
No. in the figure# | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0x9C00 | B | Stream name (out or err) | -- | -- |
2 | 0x9C01 | B | Stream name (out or err) | -- | -- |
