This subsection describes the trace collection points of a Message-driven Bean (EJB2.1 and later), and also the trace information that can be collected.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-40 Details of trace collection points in a Message-driven (EJB2.1 and later)
Event ID | No. in the figures# | Trace acquisition points | Level |
---|---|---|---|
0x842D | 1 | Immediately after invoking the beforeDelivery() method of the Message-driven Bean | A |
0x842E | 2 | Immediately before the return the beforeDelivery() method of the Message-driven Bean | A |
0x842F | 3 | Immediately after invoking the method of message listener of the Message-driven Bean from the resource adapter | A |
0x8431 | 4 | Immediately before the EJB container calls back the method of message listener of the Message-driven Bean | A |
0x8432 | 5 | Immediately after returning from the callback of the method of message listener of the Message-driven Bean | A |
0x8430 | 6 | Immediately before the return of the method of message listener of the Message-driven Bean that is invoked from the resource adapter | A |
0x8433 | 7 | Immediately after invoking the beforeDelivery() method of the Message-driven Bean | A |
0x8434 | 8 | Immediately before the return the beforeDelivery() method of the Message-driven Bean | A |
The following figure shows the trace collection points in a Message-driven Bean (EJB2.1 and later).

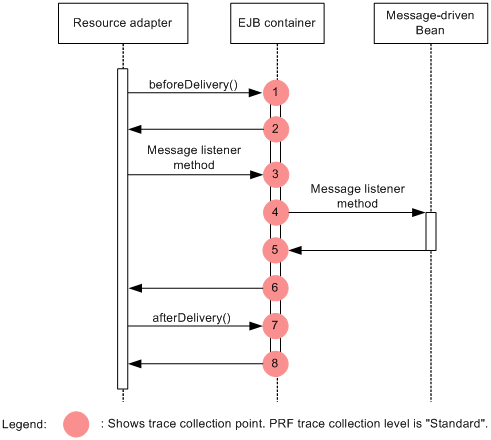

Figure 8-26 Trace collection points of a Message-driven Bean (EJB2.1 and later) (in the case of optionA#)
# Indicates the message delivery option described in Connector 1.5 specifications.

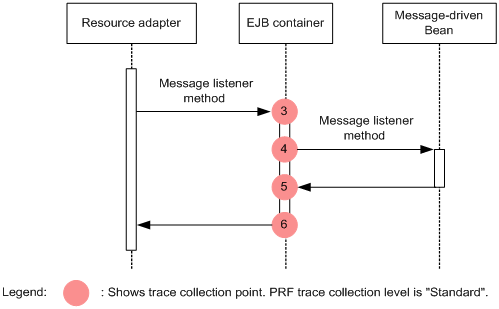

Figure 8-27 Trace collection points of a Message-driven Bean (EJB2.1 and later) (in the case of optionB#)
# Indicates the message delivery option described in Connector 1.5 specifications.
The following table describes the trace information that can be collected in a Message-driven Bean (EJB2.1 and later).
Table 8-41 Trace information that can be collected in a Message-driven Bean (EJB2.1 and later)
No. in the figures# | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0x842D | A | Bean name | -- | -- |
2 | 0x842E | A | Bean name | -- |
|
3 | 0x842F | A | Bean name | Method Name | -- |
4 | 0x8431 | A | Bean name | Method Name | -- |
5 | 0x8432 | A | Bean name | Method Name |
|
6 | 0x8430 | A | Bean name | Method Name | |
7 | 0x8433 | A | Bean name | -- | -- |
8 | 0x8434 | A | Bean name | -- |
|
