uCosminexus Application Server, Maintenance and Migration Guide
This subsection describes the trace collection points of a Message-driven Bean (EJB2.0), and also the trace information that can be collected.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-38 Details of trace collection points in a Message-driven Bean (EJB2.0)
Event ID | No. in the figure# | Trace acquisition points | Level |
---|---|---|---|
0x8425 | 1 | When the message processing in the EJB container starts | A |
0x8426 | 4 | When the message processing in the EJB container ends | A |
0x8427 | 2 | Immediately before the EJB container call backs the onMessage method of the Message-driven Bean | B |
0x8428 | 3 | Immediately after returning from the callback of the onMessage method of the Message-driven Bean | B |
The following figure shows the trace collection points in a Message-driven Bean (EJB2.0).

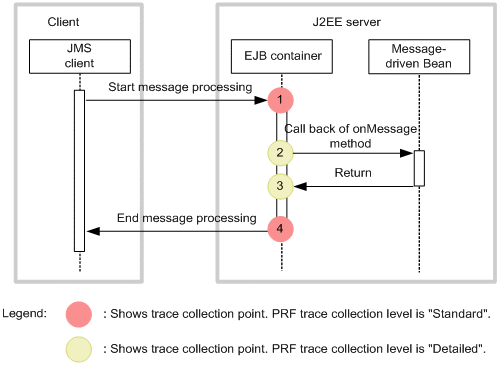

Figure 8-25 Trace collection points of a Message-driven Bean (EJB2.0)
The following table describes the trace information that can be collected in a Message-driven Bean (EJB2.0).
Table 8-39 Trace information that can be collected in a Message-driven Bean (EJB2.0)
No. in the figure# | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0x8425 | A | Bean name | -- | -- |
2 | 0x8427 | B | -- | -- | -- |
3 | 0x8428 | B | -- | -- |
|
4 | 0x8426 | A | Bean name | -- |
