The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-16 Details of trace collection points in a Web container when an exception occurs (filter trace)
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0x8200 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the Web server) | A/B |
| 0x8201 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the simple Web server) | A |
| 0x8211 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the in-process HTTP server) | A/B |
| 0x8203 | 2 | Immediately before the filter that is executed before the execution of the servlet or JSP that receives the request is invoked (filter for which the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml is omitted, or for which REQUEST is specified in the [[dispatcher]] tag) | B |
| 0x8202 | 3 | Immediately before a servlet or JSP is invoked | A/B |
| 0x8302 | 4, 9 | Immediately after completion of the processing of the servlet or JSP | A/B |
| 0x8303 | 5 | Immediately after completion of the processing of the filter that is executed before the execution of the servlet or JSP that receives the request (filter for which REQUEST is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) | B |
| 0x8206 | 6 | Immediately before a servlet or JSP is invoked via RequestDispatcher | B |
| 0x8216 | 7 | Immediately before the filter that is executed during transfer to the error page is invoked (filter for which ERROR is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) |
B |
| 0x8202 | 8 | Immediately before a servlet or JSP is invoked | A/B |
| 0x8207 | 8 | Immediately before the static contents are invoked (DefaultServlet) | B |
| 0x8307 | 9 | Immediately after completion of the processing of the static contents (DefaultServlet) | B |
| 0x8316 | 10 | Immediately after completion of the processing of the filter executed during transfer to the error page (filter for which ERROR is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) |
B |
| 0x8306 | 11 | Immediately after completion of the processing of the servlet or JSP via RequestDispatcher | B |
| 0x8300 | 12 | Immediately after completion of the request processing (via the Web server) | A |
| 0x8301 | 12 | Immediately after completion of the request processing (via the simple Web server) | A |
| 0x8311 | 12 | Immediately after completion of the request processing (via the in-process HTTP server) | A/B |

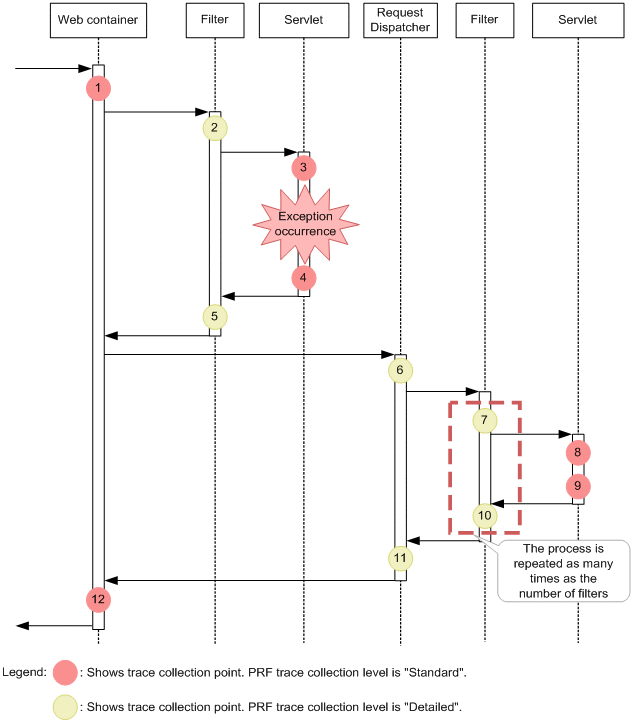

The following figure shows the trace collection points in a Web container when an exception occurs.
Figure 8-14 Trace collection points in a Web container when an exception occurs
![[Figure]](FIGURE/ZU071600.GIF)
The following table describes the trace information that can be collected in a Web container, when the filter that is invoked during Forward or Include is specified.
Table 8-17 Trace information that can be collected in a Web container when an exception occurs (filter trace)
| No. in the figure# | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0x8200 | A | HTTP method | URI | -- |
| B | Number-of-session-ID-characters: session ID: collection-method | ||||
| 0x8201 | A | HTTP method | URI | -- | |
| 0x8211 | A | HTTP method | URI | -- | |
| B | Number-of-session-ID-characters: session ID: collection-method | ||||
| 2 | 0x8203 | B | Class name | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 3 | 0x8202 | A | Class name (JSP file name when a JSP is invoked) | -- | -- |
| B | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |||
| 4 | 0x8302 | A | Class name (JSP file name when a JSP is invoked) | -- |
|
| B | Context root name |
|
|||
| 5 | 0x8303 | B | Class name | Context root name |
|
| 6 | 0x8206 | B | Class name | Dispatch type Context root name |
Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 7 | 0x8216 | B | Class name | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 8 | 0x8202 | A | Class name (JSP file name when a JSP is invoked) | -- | -- |
| B | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |||
| 0x8207 | B | - | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |
| 9 | 0x8302 | A | Class name (JSP file name when a JSP is invoked) | -- |
|
| B | Context root name |
|
|||
| 0x8307 | B | -- | Context root name |
|
|
| 10 | 0x8316 | B | Class name | Context root name |
|
| 11 | 0x8306 | B | Class name | Dispatch type Context root name |
|
| 12 | 0x8300 | A | HTTP method | URI |
|
| B |
|
||||
| 0x8301 | A | HTTP method | URI |
|
|
| 0x8311 | A | HTTP method | URI | Entrance-time status-code | |
| B | Entrance-time status-code number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | ||||
