The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-14 Details of trace collection points in a Web container during normal termination (filter trace)
| Event ID | No. in the figure# | Trace acquisition points | Level |
|---|---|---|---|
| 0x8200 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the Web server) | A/B |
| 0x8201 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the simple Web server) | A |
| 0x8202 | 3 | Immediately before a servlet or JSP is invoked | A/B |
| 0x8202 | 6 | Immediately before a servlet or JSP is invoked | A/B |
| 0x8203 | 2 | Immediately before the filter that is executed before the execution of the servlet or JSP that receives the request is invoked (filter for which the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml is omitted, or for which REQUEST is specified in the [[dispatcher]] tag) | B |
| 0x8206 | 4 | Immediately before a servlet or JSP is invoked via RequestDispatcher | B |
| 0x8207 | 6 | Immediately before the static contents are invoked (DefaultServlet) | B |
| 0x8211 | 1 | Immediately after a request is acquired, or when the request header analysis is complete (via the in-process HTTP server) | A/B |
| 0x8214 | 5 | Immediately before the filter executed during Forward is invoked (when the filter for which FORWARD is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml is invoked) | B |
| 0x8215 | 5 | Immediately before the filter executed during Include is invoked (filter for which INCLUDE is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) |
B |
| 0x8300 | 12 | Immediately after completion of the request processing (via the Web server) | A/B |
| 0x8301 | 12 | Immediately after completion of the request processing (via the simple Web server) | A |
| 0x8302 | 7 | Immediately after completion of the processing of the servlet or JSP is complete | A/B |
| 0x8302 | 10 | Immediately after completion of the processing of the servlet or JSP is complete | A/B |
| 0x8303 | 11 | Immediately before the processing of the filter that is executed before the execution of the servlet or JSP that receives the request is complete (filter for which REQUEST is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) | B |
| 0x8306 | 9 | Immediately after the processing of the servlet or JSP via RequestDispatcher is complete | B |
| 0x8307 | 7 | Immediately after completion of the processing of the static contents (DefaultServlet) | B |
| 0x8311 | 12 | Immediately after completion of the request processing is complete (via the in-process HTTP server) | A |
| 0x8314 | 8 | Immediately after completion of the processing of the filter executed during Forward (filter for which FORWARD is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) | B |
| 0x8315 | 8 | Immediately after completion of the processing of the filter executed during Include (filter for which INCLUDE is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml) | B |
The following figure shows the trace collection points in a Web container, when the filter that is invoked during Forward or Include is specified.

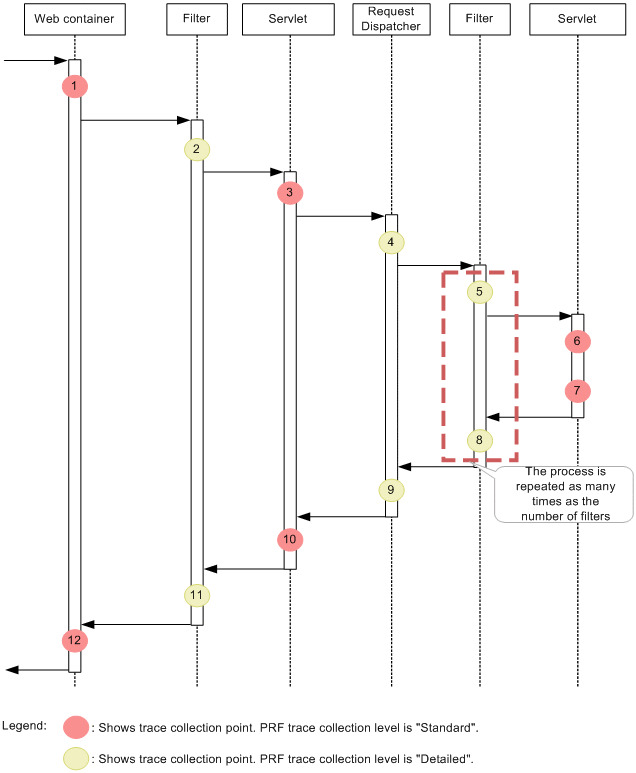

Figure 8-13 Trace collection points in a Web container during normal termination (filter trace)
![[Figure]](FIGURE/ZU071500.GIF)
The following table describes the trace information that can be collected in a Web container, when the filter that is invoked during Forward or Include is specified.
Table 8-15 Trace information that can be collected in a Web container during normal termination (filter trace)
| No. in the figure# | Event ID | Level | Information that you can acquire | ||
|---|---|---|---|---|---|
| Interface name | Operation name | Optional | |||
| 1 | 0x8200 | A | HTTP method | URI | -- |
| B | Number-of-session-ID-characters: session ID: collection-method | ||||
| 0x8201 | A | HTTP method | URI | -- | |
| 0x8211 | A | HTTP method | URI | -- | |
| B | Number-of-session-ID-characters: session ID: collection-method | ||||
| 2 | 0x8203 | B | Class name | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 3 | 0x8202 | A | Class name (JSP file name when a JSP is invoked) | -- | -- |
| B | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |||
| 4 | 0x8206 | B | Class name | Dispatch type Context root name |
Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 5 | 0x8214 | B | Class name | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID |
| 0x8215 | B | Class name | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |
| 6 | 0x8202 | A | Class name (JSP file name when a JSP is invoked) | -- | -- |
| B | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |||
| 0x8207 | B | -- | Context root name | Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | |
| 7 | 0x8302 | A | Class name (JSP file name when a JSP is invoked) | -- |
|
| B | Context root name |
|
|||
| 0x8307 | B | -- | Context root name |
|
|
| 8 | 0x8314 | B | Class name | Context root name |
|
| 0x8315 | B | Class name | Context root name |
|
|
| 9 | 0x8306 | B | Class name | Dispatch type Context root name |
|
| 10 | 0x8302 | A | Class name (JSP file name when a JSP is invoked) | -- |
|
| B | Context root name |
|
|||
| 11 | 0x8303 | B | Class name | Context root name |
|
| 12 | 0x8300 | A | HTTP method | URI |
|
| B |
|
||||
| 0x8301 | A | HTTP method | URI |
|
|
| 0x8311 | A | HTTP method | URI | Entrance-time status-code | |
| B | Entrance-time status-code number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID | ||||
