To check the job status from the node submap:

1. Select the symbol for the job status you want to check in the NNM node submap.
2. From the Administration menu, click JP1/Software Distribution Administration and then View Job Status.
   The JP1/Software Distribution Job Viewer is displayed.

3. From the View menu, click Job Status to select the status of the job you want to display.
   The job is displayed in the selected status. You can also select job status from the toolbar button.
   Double-clicking the job information displayed allows you to check detailed information for that job.

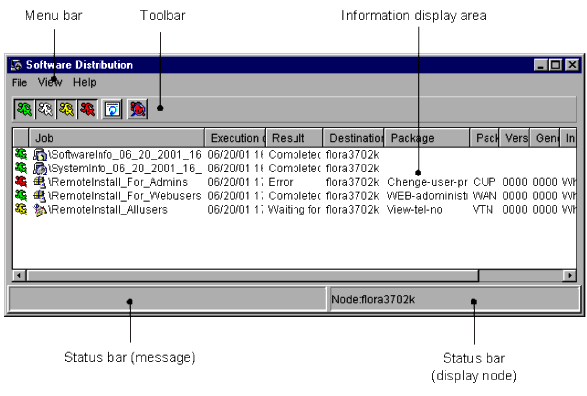

The following shows what JP1/Software Distribution Job Viewer looks like:

Figure 3-15 Example of JP1/Software Distribution Job Viewer

Menu bar

File menu

This allows you to close JP1/Software Distribution Job Viewer and check detailed information about the job.

View menu

This allows you to select the type of job execution status to be checked and refresh job information.

Help menu

This displays the version information about JP1/Software Distribution.

Toolbar

Green: Shows normal termination jobs.

White: Shows jobs that are yet to be executed.

Yellow: Shows installation-pending jobs.

Red: Shows jobs with errors.

Refreshes job execution status information.

Shows detailed information about a job.

Information display area

Shows jobs with a selected execution status.

Status bar

The view node shows the host name (or IP address) of the relay system or client about which information is being displayed.

Messages show the meaning of the toolbar and explanatory messages on input items.
