This subsection explains how to use HP NNM version 7.5 or earlier to check JP1/Software Distribution symbols. In this section, HP NNM is simply referred to as NNM.
Double-clicking the node symbol displayed in the node map window displays a submap of the selected node. The following shows examples of the network presenter window and the node submap window:

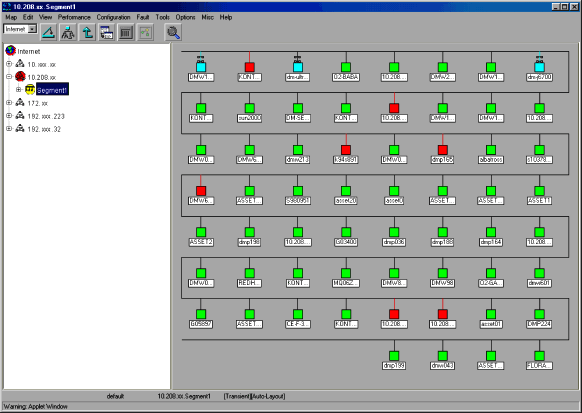

Figure 3-2 Network presenter window (when the NNM Map window is used)
![[Figure]](FIGURE/CM20020.GIF)

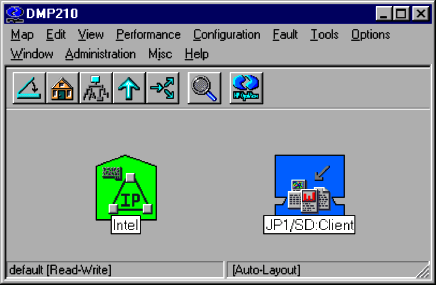

Figure 3-3 Node submap window (when the NNM Map window is used)
![[Figure]](FIGURE/CM20030.GIF)
Select the JP1/SD:Client or JP1/SD:SubManager symbol. From the Administration menu, click JP1/Software Distribution Administration to display the menus. Using these menus, you can access information about inventories and job execution status.
Double-clicking a node symbol displayed in the list area or description area in the network presenter window displays the submap of the selected node on a Web browser. The following shows the examples of the network presenter window and the node submap window:

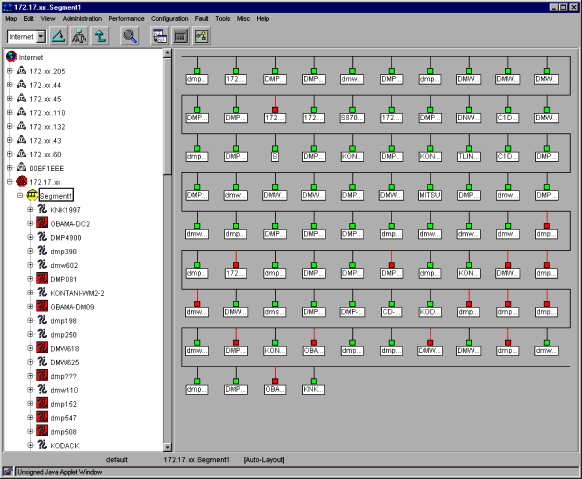

Figure 3-4 Network presenter window (when a Web browser is used)
![[Figure]](FIGURE/CM20040.GIF)

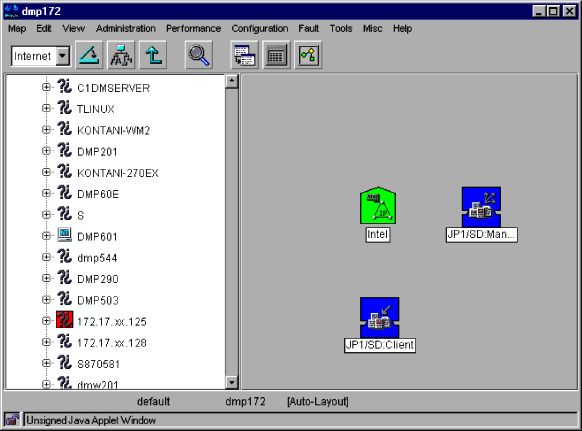

Figure 3-5 Node submap window (when a Web browser is used)
![[Figure]](FIGURE/CM20050.GIF)
Select the JP1/SD:Client or JP1/SD:SubManager symbol. From the Administration menu, click JP1/Software Distribution Administration to display the menus. Using these menus, you can access information about inventories and job execution status.
