To set the information needed for setting up the server for Asset Information Manager Subset, use the Server Setup dialog box. The following describes the settings:
- Database Information
Sets the information needed for connecting to the database for Asset Information Manager Subset, such as the login ID and service name.
- Session Information
Sets the time for forcibly logging out from the Asset Information Manager Subset operation window and the Operation Log List, Operation Log Total, and Software Usage Management windows that are started from Remote Installation Manager; also sets the number of users that can log in concurrently.
- Basic Information
Sets the number of search result items to be displayed and the items for managing groups.
- Link with JP1/SD
Sets the information needed for connecting to the managing server database, such as the login ID and service name. This item is also used to set the assignment method for loading inventory information to the Asset Information Manager Subset database.
To set each item in the Server Setup dialog box:
- From the Start menu, choose Software Distribution Manager, Asset Information Manager, and then Setup.
The Setup dialog box for Asset Information Manager Subset is displayed.
- Choose Server Setup.
The Server Setup dialog box appears.

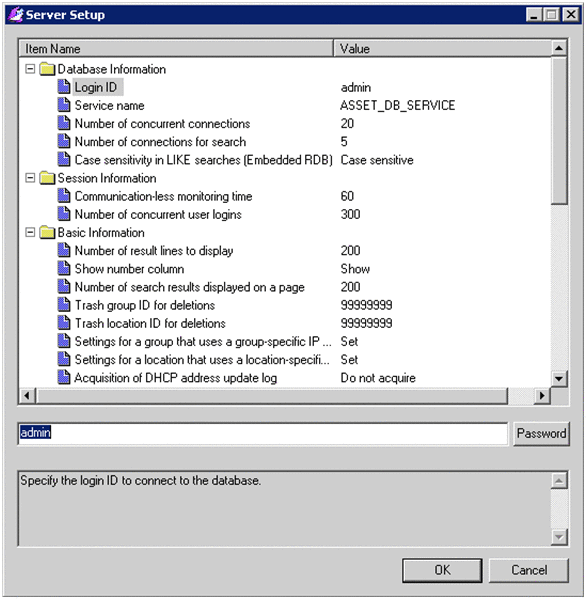

Figure 10-3 Server Setup dialog box
![[Figure]](FIGURE/RDB0220.GIF)
- Set the appropriate values for your environment.
For details about each setting, see the description of the corresponding item.
To specify Login ID under Database Information and JP1/SD database login ID under Link with JP1/SD, click the Password button to display the Set Password dialog box, and then specify the password.
- Click the OK button.
A server environment is set up for Asset Information Manager Subset based on the specified information, and then the Server Setup dialog box closes.
To close the Server Setup dialog box without setting up the environment, click the Cancel button.
The following subsections provide details of each item.
- Organization of this section
- 10.2.1 Setting database information
- 10.2.2 Setting the session information
- 10.2.3 Setting the basic information
- 10.2.4 Setting the link with Directory Server
- 10.2.5 Setting the link with JP1/SD
- 10.2.6 Setting how to assign inventory information
