The deletion history of system configuration information is displayed in the Deletion History of System Configuration Information dialog box. To display this dialog box, choose File, and then Deletion History of System Configuration Information. You can also display this dialog box from any of the windows of Remote Installation Manager.

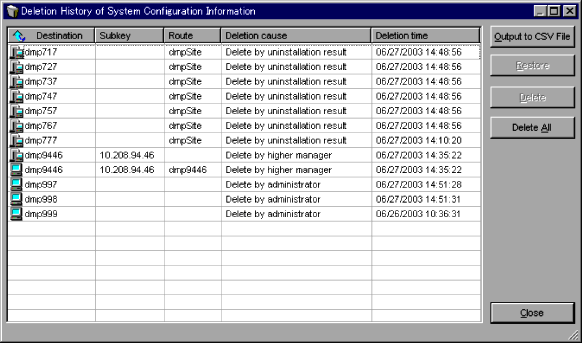

Figure 9-40 Deletion History of System Configuration Information dialog box

The Deletion History of System Configuration Information dialog box displays Destination, Subkey, and Route from the system configuration information as well as the following two items for each deleted host:

Deletion cause

One of the following three items is displayed as the cause of deletion of a host from the system configuration information:

Deletion cause	Description
Deletion by uninstallation result	Removal was reported from a client, relay system, or relay manager. Host was deleted by a Get system configuration information job.
Deletion by administrator	From the System Configuration window, a client, relay system, or relay manager was deleted manually. A client was deleted by automatic or manual maintenance of system configuration information.
Deletion by higher manager	When a lower system changed its connection destination, the relay manager received notification from its higher manager indicating the removal of system configuration information of a lower system remaining in the previous route. The relay manager received notification from the higher manager indicating the removal of system configuration information by automatic or manual maintenance.

Deletion time

This is the date and time the host was removed from the system configuration information.

In the Deletion History of System Configuration Information dialog box, you can also display the following items:

Host ID, MAC address, Comment, Create date/time, and Update date/time

To add these items, from the menu displayed by right-clicking, choose Select Information, and then select desired items.

By dragging the corner or border of the Deletion History of System Configuration Information dialog box, you can change its size. When you click on a column name, the sort order of the displayed data is toggled between ascending order and descending order.
