9.4.1 Setting a policy for an ID group

You can set a policy for an ID group from the central manager that manages the ID group or the relay manager specified as the relay managing the ID. This subsection describes how to set a policy for an ID group.

To set a policy for an ID group:

  1. In the Destination window, choose Options, and then Auto Host Group/ID Maintenance.
    The Policy Setup dialog box appears.

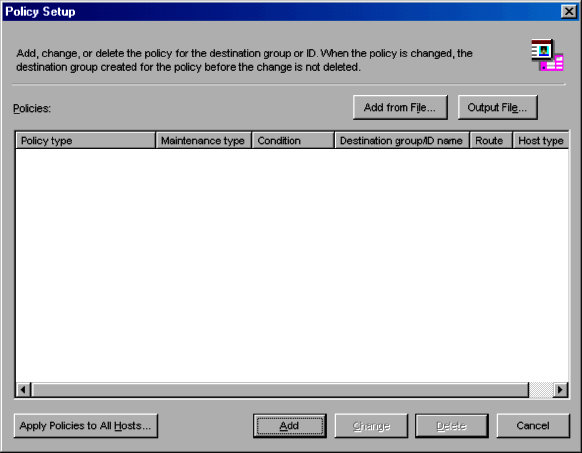

    Figure 9-30 Policy Setup dialog box

    [Figure]

  2. Click the Add button.
    To change an existing policy, select the applicable policy and then click the Change button. To delete a policy, select the applicable policy and then click the Delete button.
    Clicking the Add button displays the Selection of Maintenance Target dialog box.

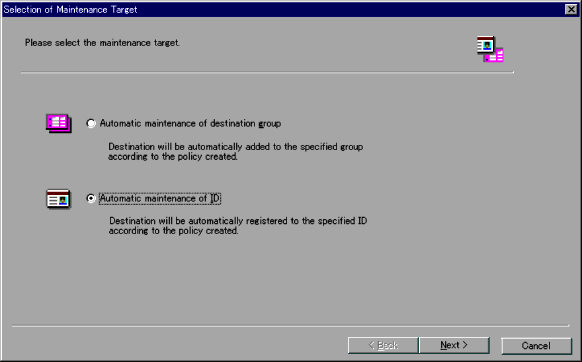

    Figure 9-31 Selection of Maintenance Target dialog box

    [Figure]

    Select Automatic maintenance of ID.
  3. Click the Next button.
    The Select Policy Type dialog box appears.

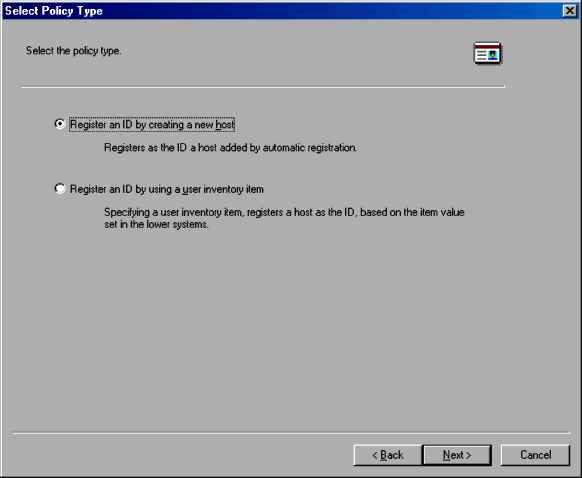

    Figure 9-32 Select Policy Type dialog box

    [Figure]

  4. Select a policy type that you want to set and then click the Next button.
  5. In the displayed dialog box, set the policy.
    The dialog box to be displayed depends on the selected item. For details about the settings in each dialog box, see (1) or (2) shown in the following table:
    Selection item See
    Register an ID by creating a new host (1) Settings in the Register ID Based on New Host dialog box
    Register an ID by using a user inventory item (2) Settings in the Register ID by Using User Inventory Item dialog box
  6. Click the Next button.
    The Confirm Policies dialog box appears.

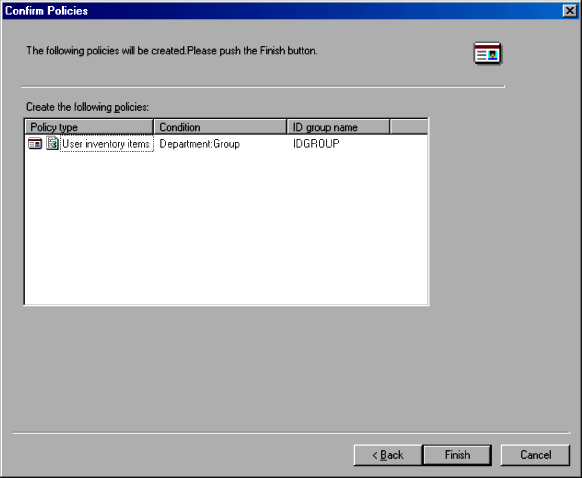

    Figure 9-33 Confirm Policies dialog box

    [Figure]

    Confirm the ID group for which the policy is to be set. To select a different ID group, click the Back button to display the previous dialog box and then select the desired ID group.
  7. Click the Finish button.
    The policy is displayed in the Policy Setup dialog box.

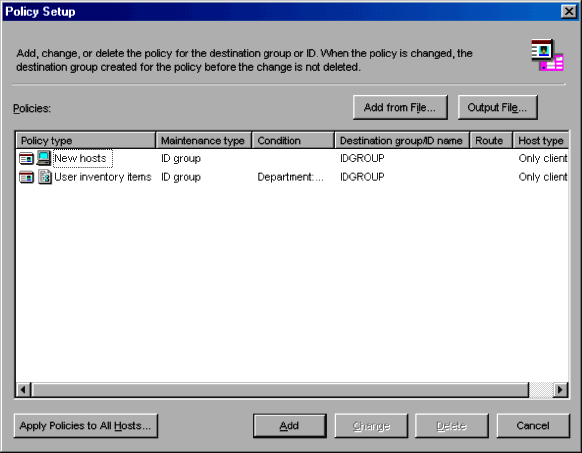

    Figure 9-34 Policy Setup dialog box

    [Figure]

Organization of this subsection
(1) Settings in the Register ID Based on New Host dialog box
(2) Settings in the Register ID by Using User Inventory Item dialog box

(1) Settings in the Register ID Based on New Host dialog box

You can automatically register a new host that has been registered in the system configuration information to an ID group. Only one policy can be set.

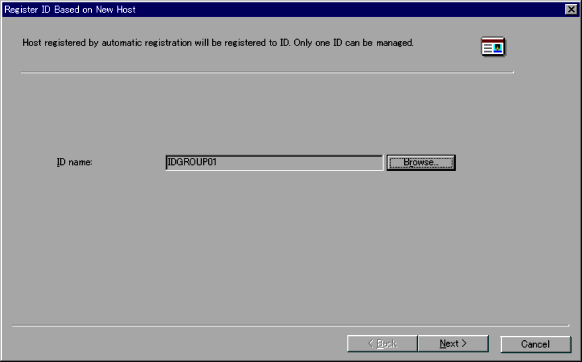

Figure 9-35 Register ID Based on New Host dialog box

[Figure]

Clicking the Browse button displays the ID List dialog box. Select the ID group for which the policy is to be set.

To create a new ID group, click the Create ID Group button in the ID List dialog box.

(2) Settings in the Register ID by Using User Inventory Item dialog box

You can register a client to an ID group on the basis of the user inventory information reported by the client. Only the items managed on the local server and on higher servers can be specified in policies. There is no limit to the number of policies that can be set.

The time required for executing automatic maintenance of ID groups depends on the number of policies that have been set. The following shows the formula for estimating the time required for automatic maintenance of ID groups:

(Number of ID groups registered by policies x 15) + (number of jobs executed by target ID groups x 50) + 20 (milliseconds)

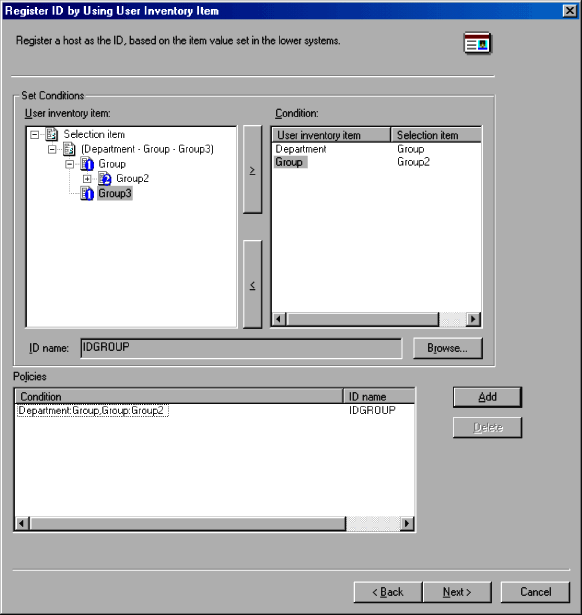

Figure 9-36 Register ID by Using User Inventory Item dialog box

[Figure]

To specify settings in the Register ID by Using User Inventory Item dialog box:

  1. In the desired User inventory item column, select an item and then click the > button.
    The selected item is added to the Condition column. You can set a maximum of 10 conditions. The same user inventory item can be specified only once within a policy.
    To delete an item from the Condition column, select the item and then click the < button.
  2. Click the Browse button.
    The ID List dialog box appears. Select the ID group for which the policy is to be set.
    To create a new ID group, click the Create ID Group button in the ID List dialog box.
  3. Click the Add button.
    The policy specified in the Condition column is added to Policies.
    To delete a policy, select the policy and then click the Delete button.
