This subsection presents examples of linkage between system configuration information and ID group information.
This subsection explains the linkage between system configuration information and ID group information when a relay managing the ID or a client registered in an ID group is deleted from the system configuration information.
The following figure shows an example in which a relay system that was defined as a relay managing the ID is deleted.

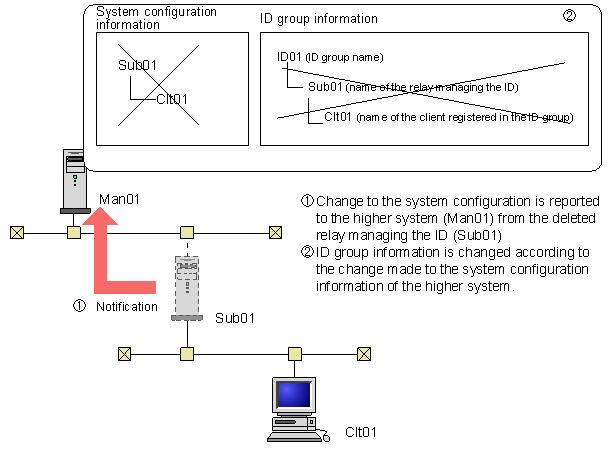

Figure 8-21 Example of deleting a relay system defined as a relay managing the ID
![[Figure]](FIGURE/SYS0250.GIF)
The following figure shows an example in which a client registered in an ID group is deleted.

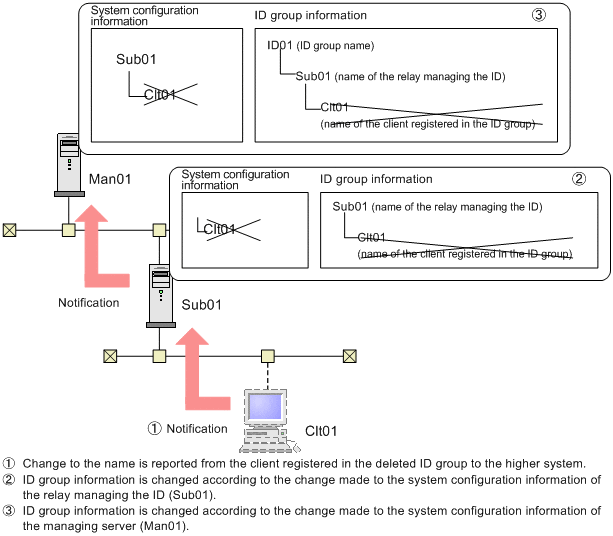

Figure 8-22 Example of deleting a client registered in an ID group
![[Figure]](FIGURE/SYS0260.GIF)
This subsection explains the linkage between system configuration information and ID group information when the path of a relay managing the ID or of a client registered in an ID group is changed in the system configuration information.
The following figure shows an example in which the connection destination of a relay system defined as the relay managing the ID is changed.

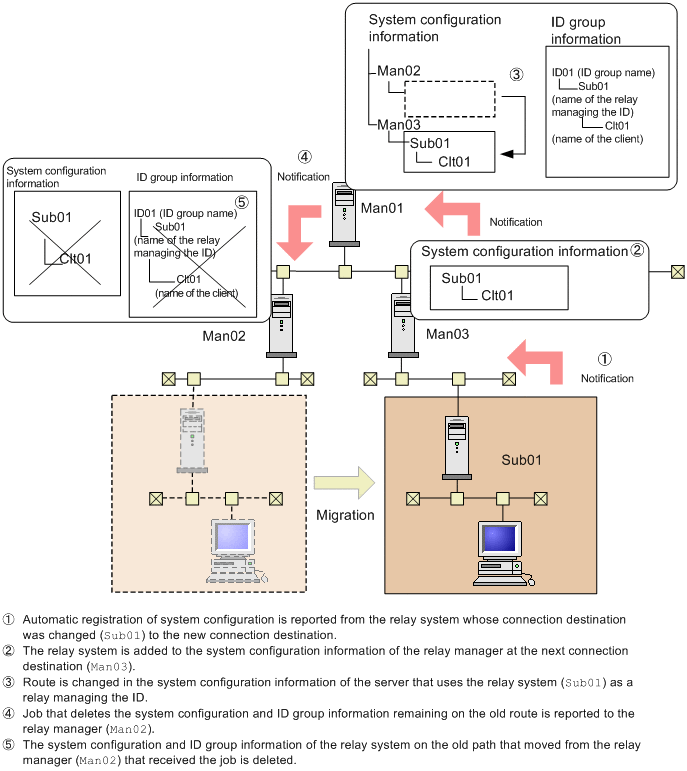

Figure 8-23 Example of changing the connection destination of a relay system defined as a relay managing the ID
![[Figure]](FIGURE/SYS0270.GIF)
The following figure shows an example in which the connection destination of a client registered in an ID group is changed.

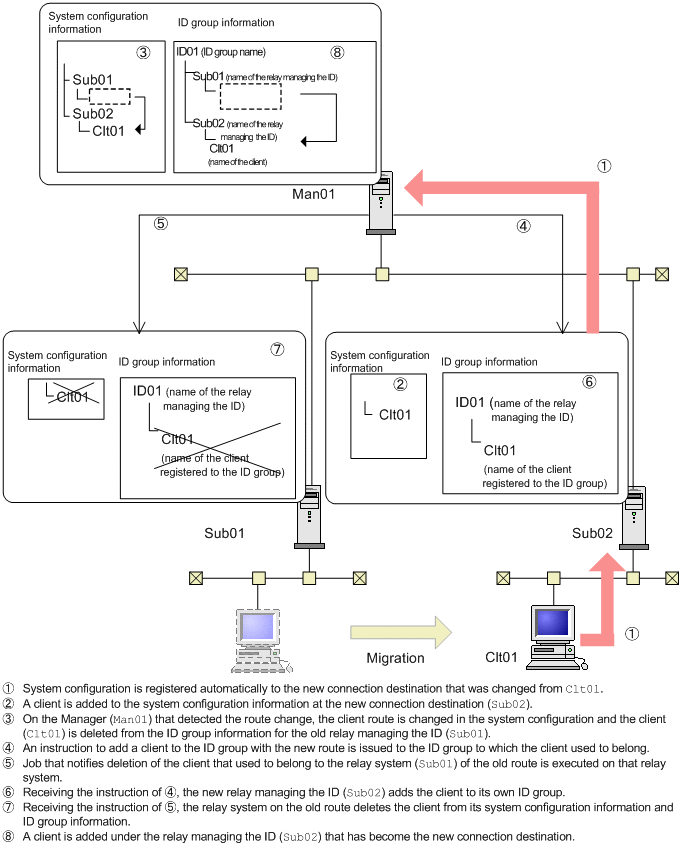

Figure 8-24 Example of changing the connection destination of a client registered in an ID group
![[Figure]](FIGURE/SYS0280.GIF)
This subsection explains the linkage between system configuration information and ID group information when a relay managing the ID or a client registered in an ID group is renamed in the system configuration information.
The following figure shows an example in which a relay system defined as the relay managing the ID is renamed.

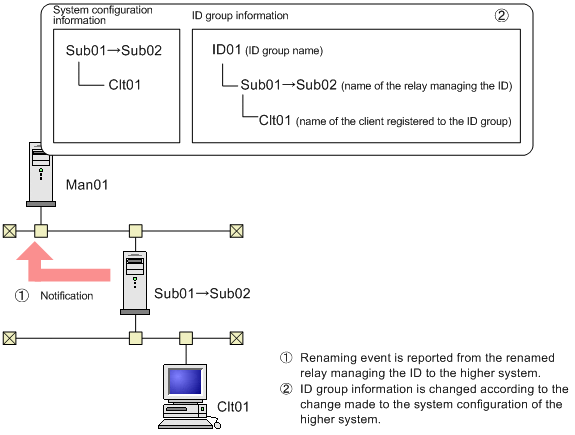

Figure 8-25 Example of renaming a relay system defined as the relay managing the ID
![[Figure]](FIGURE/SYS0290.GIF)
The following figure shows an example in which a client registered in an ID group is renamed.

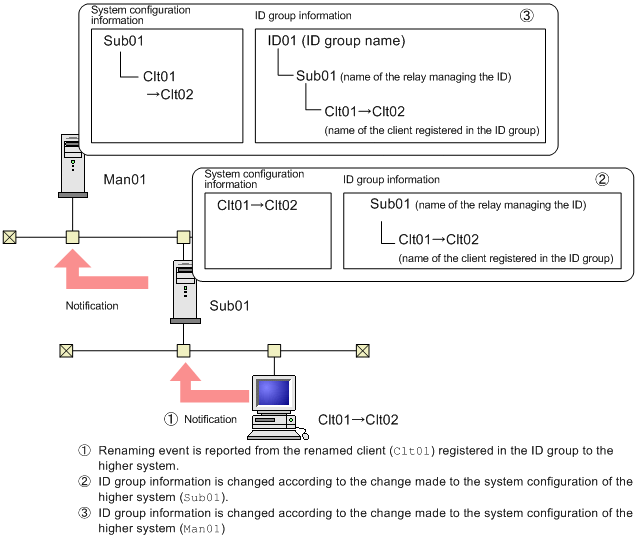

Figure 8-26 Example of renaming a client registered in an ID group
![[Figure]](FIGURE/SYS0300.GIF)
