This subsection presents an example of creating system configuration information and host group information.
- Configuration of system configuration information and host group information
In the configuration shown in the figure below, the system creates the system configuration information automatically, and the user creates the host group information by editing the system configuration information file.

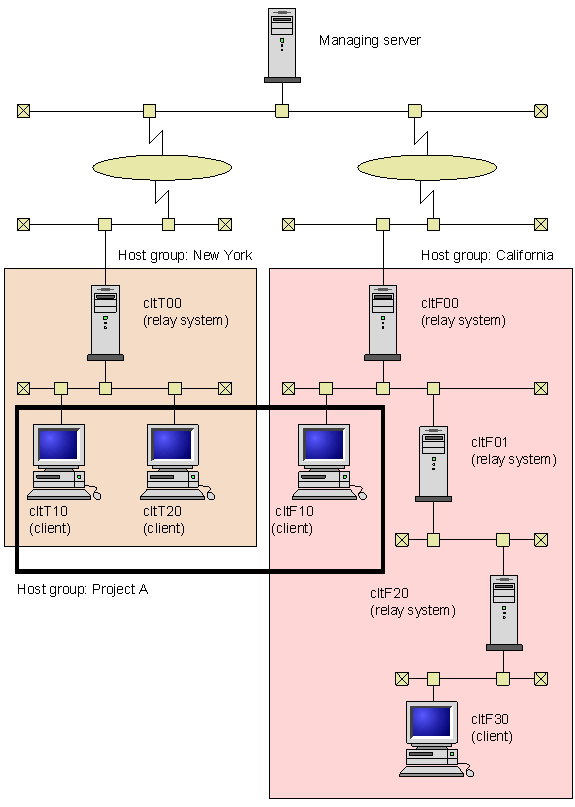

Figure 8-9 Configuration of system configuration information and host group information
![[Figure]](FIGURE/SYS0120.GIF)
- System configuration information file
The following shows system configuration information that was created automatically and then saved to a file.

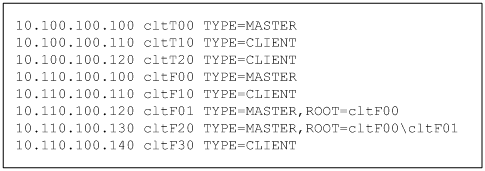

Figure 8-10 System configuration information file
![[Figure]](FIGURE/SYS0130.GIF)
- Host group file
The following shows a host group file that was created by editing system configuration information that was saved to a file. To save system configuration information to a file, in the System Configuration window, choose File and then Save to File.

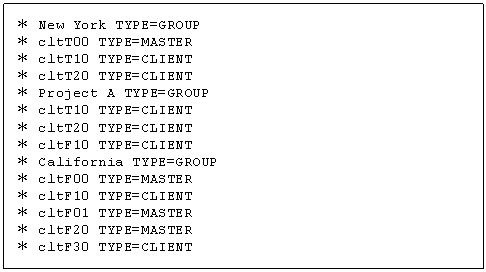

Figure 8-11 Host group file
![[Figure]](FIGURE/SYS0140.GIF)
