Detailed setup of a relay manager is required in order for the relay manager to function as a client. When the detailed setup is completed, clicking the OK button displays the Setup dialog box again.

If you change any of the settings in the relay manager setup, you must restart the relay manager service in order for the changes to take effect. While the relay manager service is running, make the changes to the setup and then click the OK button in the Detailed Information Setup dialog box. The relay manager service restarts.

The following table lists the detailed setup items for a relay manager.

Table 4-4 Detailed setup items for a relay manager

Category	Item
Processing Message	Display processing message
	Program to display the message
Notification Dialog Box	Display Message box at job error
	Prompt users before deletion whenever a shortcut in Software Distribution Client startup fails
	Display the Update User Information dialog box at system startup
	Display the Update User Information dialog box at periodic execution
Default Running Status/Polling	Start client automatically at system startup
	Whether client will poll managing server
	Polling frequency
Communication	Port numbers
	Protocol used by the higher system requesting the client to start a job
	File transfer buffer size
	Wait for response from communications software
	Multiple network adapters
	Automatic registration of this computer in the system configuration
	Also report inventory to the server
Retry Communication	Socket connection (retry count/interval)
	Communication failure (retry count/interval)
	Installation results files failed to transmit to the higher server
Error Handling	Generations of log file to be saved
	Maximum lines in a log file
	Type of Event Viewer message
System Monitoring	System monitoring
	Display the System Monitoring icon
	Display alert messages
	Report alerts to the higher system
	Report inventory to the higher system when the system is changed
Job Options	Automatic inventory update
	Suppress periodic jobs when the connection destination of the client is changed
	Suppress reports of the job status Waiting for installing/collecting to the higher system
	Do not repeat package IDs when collecting software information
Installation Options	Installation/file collection job (retry count/interval)
	Split package distribution
	Check local disk capacity before unpacking software
	Store installation history in the event of an installation error
	Delete the work directory for installing Hitachi program products after installation
	InstallShield timeout
Remote Collect Options	Restricting remote collection jobs executed on the client
Multicast Distribution	Port numbers for multicast distribution and allowing jobs to be distributed using multicast distribution (multicast address)
Startup	Create Software Distribution Client Startup folder
	Move programs in Startup group to the Software Distribution Client Startup group
	Select shortcuts to move programs to the Software Distribution Client Startup group

Note that the settings in the Detailed Information Setup dialog box are the same as those in the Client Setup dialog box for JP1/Software Distribution Client (client); for details, see 6.2 Setting up Client.

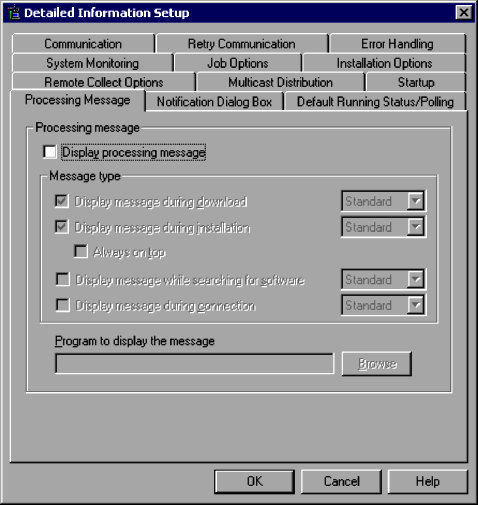

Figure 4-27 Detailed Information Setup dialog box
