AIM page

If the software operation status is to be monitored, this page sets the URL of Asset Information Manager Subset so that the Operation Log List, Operation Log Total, and Software Operation Status windows can be used.

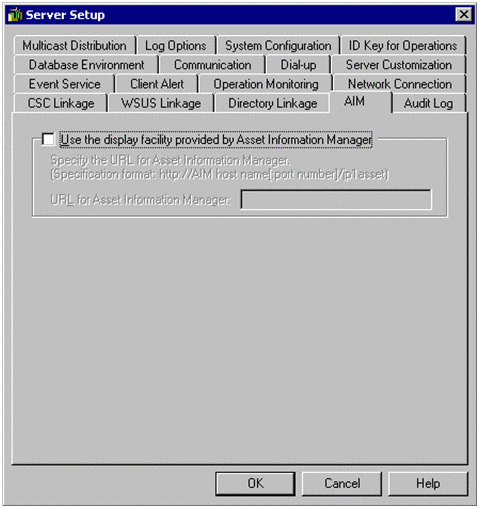

Figure 4-22 AIM page

[Figure]

Organization of this subsection: (1) Use the display facility provided by Asset Information Manager

(1) Use the display facility provided by Asset Information Manager

To start the Operation Log List, Operation Log Total, and Software Operation Status windows, select this check box.

If Asset Information Manager Subset is installed on the computer running the managing server, this check box is selected by default; otherwise, this check box is not selected by default.

URL of Asset Information Manager

Specifies the URL of the Web site for Asset Information Manager Subset or JP1/Asset Information Manager in the following format (if the Web site employs SSL, replace http with https):

http://host-name[:port-number]/jp1asset

If Asset Information Manager Subset is installed on the computer running the managing server, the following URL is set by default:

http://local-host-name/jp1asset

host-name: Specifies the host name or IP address of the host on which Asset Information Manager Subset or JP1/Asset Information Manager is installed.

port-number: Specifies the port number of the Web site for Asset Information Manager Subset or JP1/Asset Information Manager.
