This page specifies the URL of WSUS Linkage to which JP1/Software Distribution is to connect in order to establish linkage with WSUS.

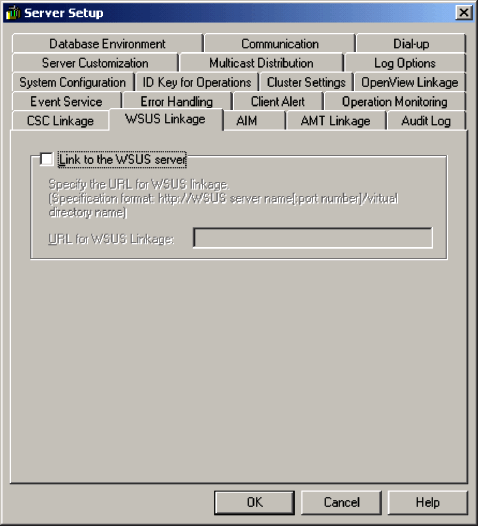

Figure 4-20 WSUS Linkage page
![[Figure]](FIGURE/MSE0170.GIF)
- Link to the WSUS server
- To link to WSUS, select this check box. The default is that this check box is not selected.
- URL for WSUS Linkage
- Specifies the URL of WSUS Linkage to which JP1/Software Distribution is to connect, expressed as up to 127 characters. The following shows the format of the URL that is specified:
http://WSUS-server-name[:port-number ]/virtual-directory-name
- WSUS Server name
- Specifies the host name of the WSUS server on which WSUS Linkage has been installed.
- Port number
- Specifies the port number of the Web server on the WSUS server. This item is optional; when it is omitted, 80 is set.
- Virtual directory name
- Specifies the virtual directory that was created when WSUS Linkage was installed.
- The following example specifies the WSUS server name wssrv001, port number 80, and virtual directory name netmWS:
- http://wssrv001:80/netmWS
