If you use a network drive for the operation history storage directory or operation history backup directory, you must set the authentication information required in order to connect to the network drive. These settings are not required if you have specified a local drive for the operation history storage directory. For details about the authentication information to be set, see 2.5.8 Collecting operation history and suppression history in the manual Description and Planning Guide.

The authentication information set here can be changed on the Network Connection page at the time of setup.

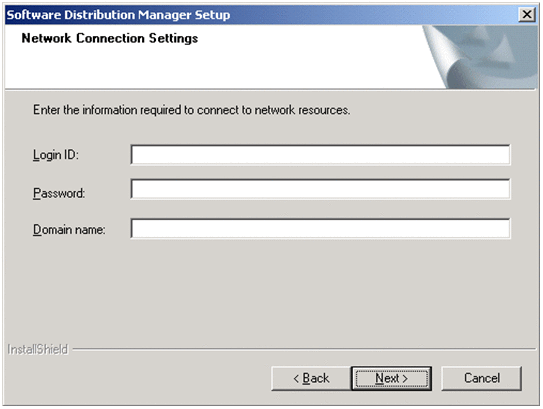

Figure 2-19 Network Connection Settings dialog box

Login ID

Specify the login ID used to connect to the network drive, expressed as 1 to 30 alphanumeric characters and symbols. None of the following symbols can be used:

\ / * : ; , + < = > ? | [ ]

If you specify a network drive for the operation history storage directory and operation history backup directory, make sure that you also specify the password and domain name.

Password

Specify the password used to connect to the network drive, expressed as 1 to 30 alphanumeric characters and symbols. Spaces are not permitted.

Domain name

Specify the domain name used to connect to the network drive, expressed as 1 to 127 alphanumeric characters and symbols. None of the following symbols can be used:

\ / * : ; , + < = > ? | [ ]
