4.8.1 Adding codes

To add a code:

  1. In the Managed class list, click the link of the class to which a code is to be added.
    The code ID of the selected class is displayed.
    Some code information cannot be added. For details about the code information that cannot be added, see 4.8.6 Code information that cannot be added or deleted.
  2. Click the link of the Code ID to which a code is to be added.
    The code and the corresponding display value are displayed.
    The contract information and company catalog, and the hardware information and device catalog share code information. For details about the shared codes, see 4.8.5 Code IDs shared among multiple classes.
  3. Click the Add button.
    The Add Code dialog box is displayed.
    Code value and Display value must be specified. You cannot add a code or display value that has already been registered.
    Note that the meaning of a code might depend on the numerical range in which it is specified. The code ranges that can be specified have specific code IDs. For details about the code specification ranges, see 4.8.4 Meaning of codes depending on specification range.
    To cancel, click the Close button.
  4. Click the OK button.
    The code is added based on the specified information, and the Add Code dialog box closes.

The following figure shows the Add Code dialog box in which a code to be registered is specified.

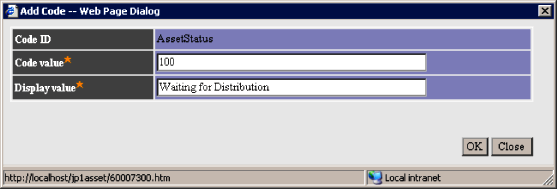

Figure 4-25 Add Code dialog box

[Figure]

Notes
To add a code to CPUType and OSType for items added by JP1/Software Distribution, make sure that the added code matches JP1/Software Distribution's system information CPU type.
If you add a unique code to CPU type, make sure that the specified value is in the range from 00000 to 99999.
