4.8 Adding and changing types and statuses (Code)

Information that is managed by defining its type, such as device and software status, is associated with codes in the asset management database.

By editing the codes and attributes (code display values), you can add and edit the search conditions specified with each job menu and the output result.

For example, you can add a new device type to the Device type item in the New Device window or Device Details dialog box, or you can hide unneeded CPU types for the Processor item.

For details about the codes managed in the asset management database, see 14.2 Lists of properties for object classes in the Planning and Setup Guide.

By default, only the administrator can execute Code.

To edit codes, start from the Code window, which is displayed by clicking the Code job menu. The following figure shows the Code window.

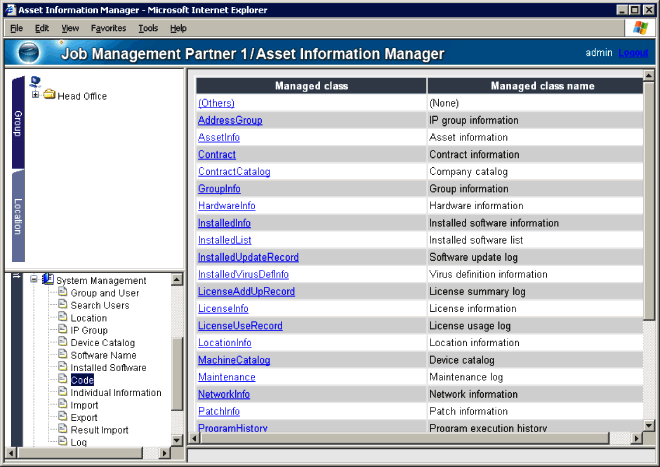

Figure 4-24 Code window

[Figure]

Organization of this section
4.8.1 Adding codes
4.8.2 Changing a code's display value
4.8.3 Deleting code information
4.8.4 Meaning of codes depending on specification range
4.8.5 Code IDs shared among multiple classes
4.8.6 Code information that cannot be added or deleted
