To view information from the IP group search list in each tab, such as IP address usage and to where IP addresses are allocated:
- In the IP group search list in each tab, click the IP address range link.
The IP Address Management dialog box is displayed, showing the usage of IP addresses in the group and IP address assignment target.
- Narrowing down the list by usage
- From the drop-down list, select Unused, Used, or Used (multiple only) and then click the Show button.
- Checking the devices sharing the same IP address
- Click a link under Used (multiple only) in the Usage condition column.
- The IP Address Management - Device List dialog box is displayed, showing a list of devices sharing the same IP address.
- To release the assignment, select the Asset No. check box and then click the Cancel button.
- Displaying information about devices and users
- Clicking a link under Asset No. or User name displays the Device Details dialog box or User Details dialog box.
- Click the Close button.
The IP Address Management dialog box closes.

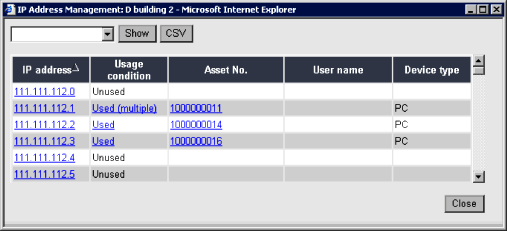

The following shows the IP Address Management dialog box.
Figure 4-13 IP Address Management dialog box
