Job Management Partner 1/Asset Information Manager Administrator's Guide
To add an IP group:
- Select a tab to which an IP group is to be added.
- Click the Add button.
Depending on the selected tab, the Add IP Group, Add Group-Specific IP Group, or Add Location-Specific IP Group dialog box is displayed.
Items identified by a star () are mandatory.
When specifying IP address range, make sure that the number of IP addresses in the range does not exceed 1,024.
To cancel, click the Close button.
- Note
- In the same tab, no IP group can have an overlapping IP address range. IP groups in different tabs might have overlapping address ranges. If you create IP groups with overlapping address ranges in different tabs, make sure that the same IP address in different tabs has different DHCP server usage settings. IP addresses in an IP group that uses the DHCP server are treated as unused IP addresses, even when they are fixed.
- Click the OK button.
The IP group is registered based on the specified information.
The following figure shows the IP Group - Add Group-Specific IP Group dialog box in which information about the IP group to be registered is specified.

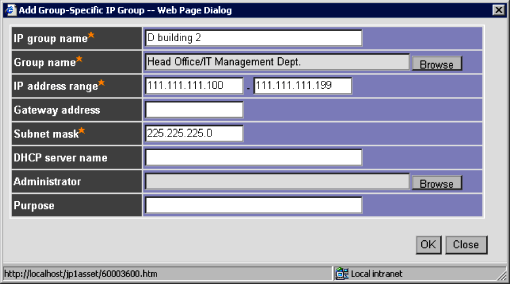

Figure 4-12 IP Group - Add Group-Specific IP Group dialog box
