To assign IP addresses to devices:
- In the IP group search list in each tab, click the IP address range link.
The IP Address Management dialog box is displayed.
- Click the link for the IP address that you want to assign to a device.
The IP Address Management - Asset Assignment dialog box is displayed.
- If necessary, specify the search condition and click the Search button.
Devices matching the search condition are searched for among devices with no IP address assigned.
To cancel, click the Close button.
- Select a device from the search result and then click the Assign button.
The IP address is assigned to the selected device.

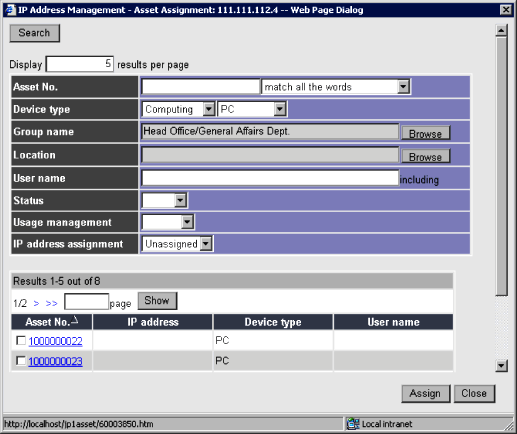

The following shows the IP Address Management - Asset Assignment dialog box with the devices searched.
Figure 4-14 IP Address Management - Asset Assignment dialog box
