2.8.6 Viewing or changing related asset information (Related Devices tab)

You use the Related devices tab in the Device Details dialog box to view or edit the association of parent-child relationships among devices.

The following figure shows the Related devices tab in the Device Details dialog box.

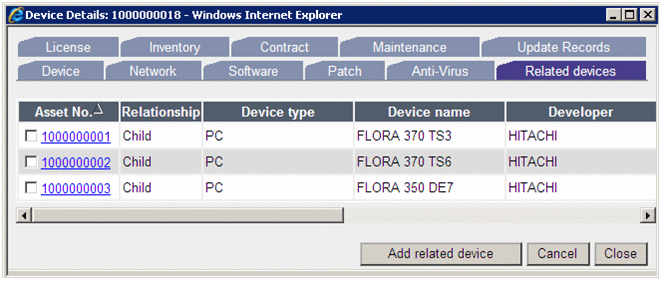

Figure 2-105 Related Devices tab in the Device Details dialog box

[Figure]

Organization of this subsection
(1) Associating devices
(2) Releasing device associations

(1) Associating devices

To associate devices using parent-child relationships:

  1. Click the Add related device button.
    The Add Related Device dialog box is displayed.
  2. Specify search conditions as necessary and click the Search button.
    A search is conducted for devices that satisfy the specified search conditions and do not already have an association with the device that will become the parent device.
  3. Select the check box of the device that you want to associate with the device that will become the parent device, and click the OK button.
    The selected device is associated as a child asset of the device that has become the parent device, and the Add Related Device dialog box is closed.

The following figure shows the Add Related Device dialog box after a search has been performed for a device that matches the search conditions

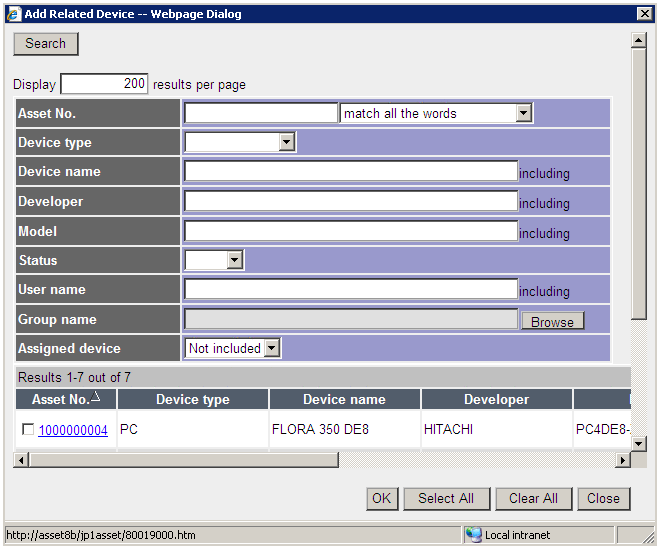

Figure 2-106 Add Related Device dialog box

[Figure]

(2) Releasing device associations

To release a device association, select the check box of the device from which you wish to remove the association, and click the Release button.
