Job Management Partner 1/Asset Information Manager Administrator's Guide
In the License tab in the Device Details dialog box, you can view and edit information about the licenses assigned to a device. The following figure shows the License tab in the Device Details dialog box.

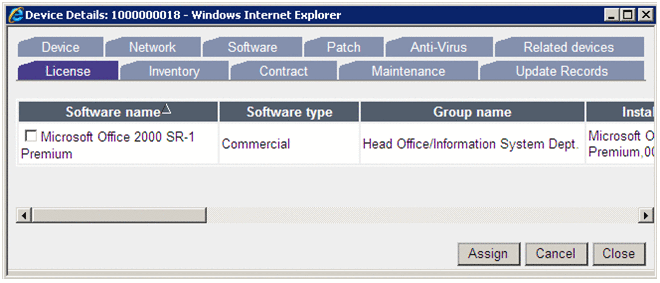

Figure 2-107 License tab in the Device Details dialog box
Software name displays the names of the software assets to which licenses have been assigned. Installed software name displays the names of the software assets that have been installed using the assigned licenses.
If the Installed software name column is blank, the licensed software asset has not been installed.
Clicking a link under Asset No. displays the Software Details dialog box, in which you can change the software information.
To assign an Install license to the device for which the Device Details dialog box is displayed:
The following figure shows the Assign License dialog box that displays the software assets for which licenses can be assigned.

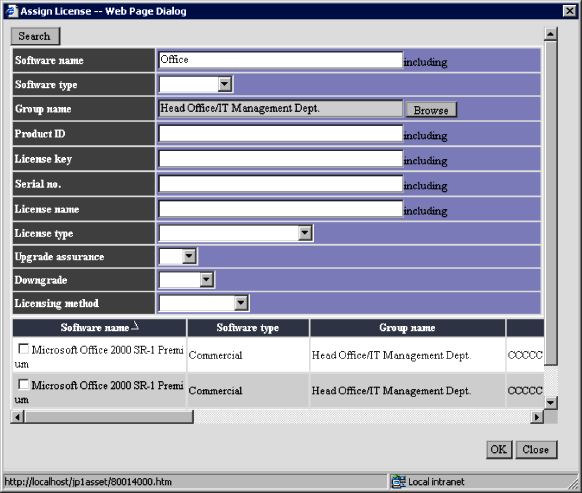

Figure 2-108 Assign License dialog box
To release an assigned license, select its check box, and then click the Cancel button.
