2.8.5 Browsing and adding anti-virus software (Anti-Virus tab)

In the Anti-Virus tab of the Device Details dialog box, you can browse and add virus definition information installed on a device.

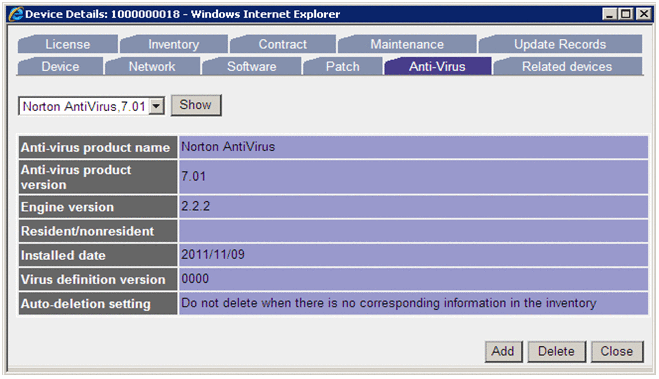

The following figure shows the Anti-Virus tab of the Device Details dialog box.

Figure 2-103 Anti-Virus tab in the Device Details dialog box

[Figure]

Organization of this subsection
(1) Browsing virus definition information
(2) Adding virus definition information

(1) Browsing virus definition information

To browse virus definition information:

  1. Select the information that you wish to browse from the drop-down list.
    The anti-virus product names and anti-virus product versions are displayed in a drop-down list. Select the information that you wish to display.
  2. Click the Show button.
    The virus definition information for the selected information is displayed.

(2) Adding virus definition information

You can add information about the installed anti-virus software product.

To add virus definition information:

  1. Click the Add button.
    The Add Anti-Virus Products dialog box is displayed.
  2. Click the Browse button for the anti-virus product name.
    The Browse Anti-Virus Products dialog box is displayed.
  3. Specify conditions as necessary, and click the Search button.
    Anti-virus product names that match the conditions are searched for.
  4. Select the radio button for the anti-virus product name.
    To register a virus definition version, click the Anti-virus product name link, and on the Browse Virus Definition Version dialog box that is displayed, select the radio button for the anti-virus definition version that you wish to register.
  5. Click the OK button.
    The Browse Virus Definition Version dialog box closes, and the specified virus definition version information is added to the Add Anti-Virus Products dialog box.
  6. Click the OK button.
    The specified contents are registered.

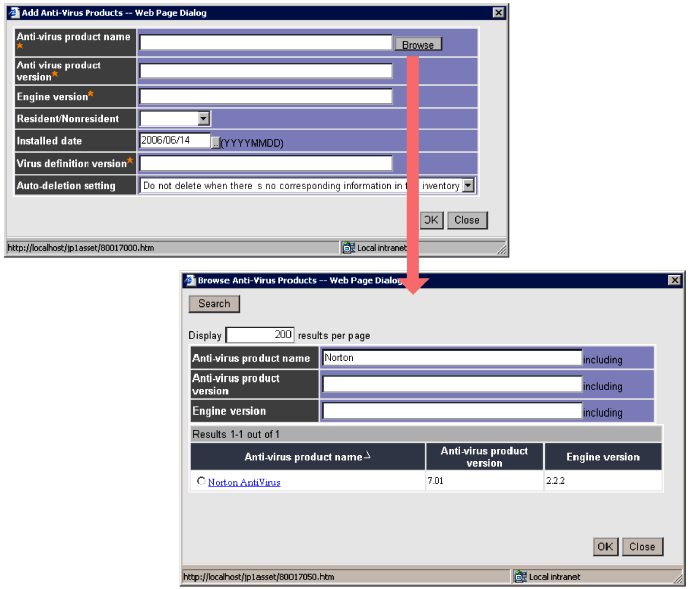

The following figure shows the flow of adding anti-virus software from the Add Anti-Virus Products dialog box.

Figure 2-104 Flow of adding installed anti-virus software

[Figure]
