2.8.2 Viewing and changing network information (Network tab)

In the Network tab in the Device Details dialog box, you can view and edit network information related to IP address. The following figure shows the Network tab in the Device Details dialog box.

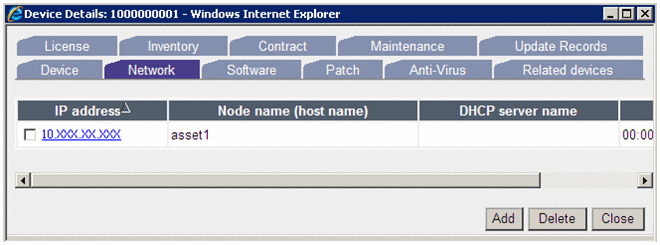

Figure 2-95 Network tab in the Device Details dialog box

[Figure]

Organization of this subsection
(1) Adding an IP address
(2) Editing network information

(1) Adding an IP address

To add an IP address:

  1. Click the Add button.
    The Add Network dialog box is displayed.
    If you do not need to search for unused IP addresses, go to step 7.
    To cancel, click the Close button.
  2. To search for unused IP addresses, click the Browse button.
    The Unused IP Address List dialog box is displayed.
  3. Select the tab for the IP group to be specified.
  4. Specify a search condition, if necessary, and then click the Search button.
    The IP groups are retrieved.
  5. Select the radio button for the desired IP group name, and then click the OK button.
    The Unused IP Address dialog box is displayed.
    To cancel, click the Close button.
  6. Select the radio button for the desired Unused IP address, and then click the OK button.
    The IP address is specified.
  7. In the Add Network dialog box, click the OK button.
    The specified IP address value is added.

If you specify both DHCP server name and IP address, the specified IP address is registered, but it is not treated as being in use; instead, it is treated as still being unused.

(2) Editing network information

In the Network Details dialog box, which is displayed by clicking a link under IP address, you can view and edit the information shown below for the IP address. The following figure shows the Network Details dialog box.

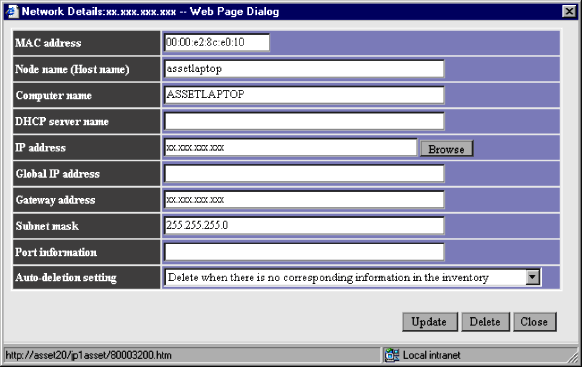

Figure 2-96 Network Details dialog box

[Figure]

Editing the network information and then clicking the Update button updates the network information based on the specified information. Selecting the check box for an IP address and then clicking the Delete button deletes the network information. To cancel, click the Close button.

Deleting network information based on inventory information
You can use Auto-deletion setting to specify whether network information is to be deleted on the basis of JP1/Software Distribution's inventory information. To handle a device for which no inventory information is collected by JP1/Software Distribution as having been deleted from the network, select Delete when there is no corresponding information in the inventory.
If the device information has been registered by a window operation, such as the case with UNIX computers and devices that are not connected to the network, you must select Do not delete when there is no corresponding information in the inventory. The default is Do not delete when there is no corresponding information in the inventory.
