Job Management Partner 1/Asset Information Manager Administrator's Guide

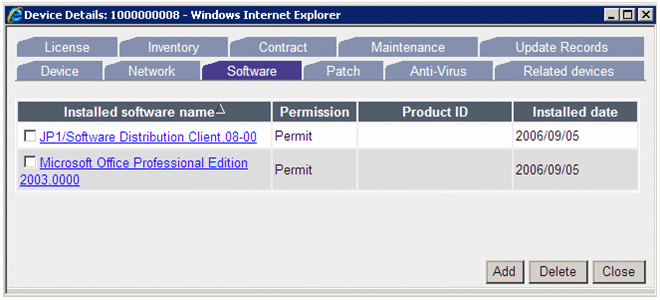

In the Software tab in the Device Details dialog box, you can view and edit information about software assets that have been installed on a device. The following figure shows the Software tab in the Device Details dialog box.
Figure 2-97 Software tab in the Device Details dialog box
Installed software name displays an installed software item's name and version. If a file name has been registered, the file name, file size, and file date are also displayed. If the package ID was obtained, the package former attribute and the package ID are also displayed.
Clicking the Installed software name link displays the Installed Software Details dialog box. In this dialog box, you can change the product ID, installation date, and auto-deletion setting for installed software.

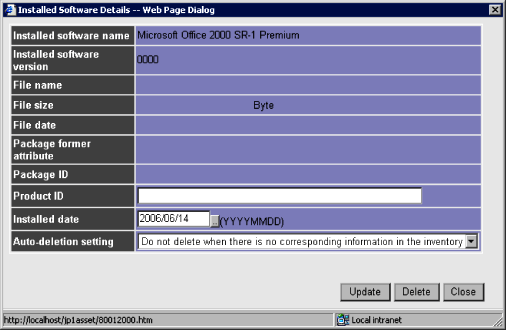

The following figure shows the Installed Software Details dialog box.
Figure 2-98 Installed Software Details dialog box
You can manage the product IDs of installed software assets. When inventory information acquired by JP1/Software Distribution 07-00 or later is registered, the product IDs of Microsoft Office components are registered automatically; otherwise, you must use the Software tab in the Device Details dialog box to register product IDs.
You can change the installed software information by editing each item and then clicking the Update button. You can delete installed software information by clicking the Delete button. To cancel, click the Close button.
When inventory information acquired by JP1/Software Distribution 07-00 or later has been registered, you can view information about Microsoft Office components. Clicking a link under Product ID displays the Component Details dialog box that contains the corresponding component information.
For details about the Microsoft Office components for which information can be obtained using JP1/Software Distribution, see the manual Job Management Partner 1/Software Distribution Description and Planning Guide, for Windows systems.
Note that you cannot add or delete component information.

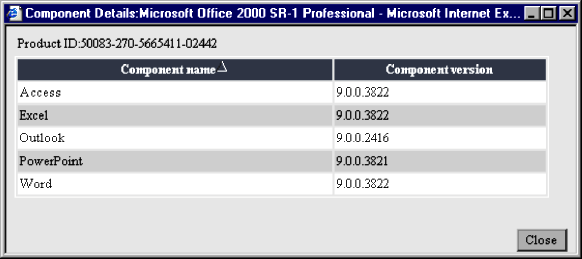

The following figure shows the Component Details dialog box.
Figure 2-99 Component Details dialog box
You can register software assets that have been installed on UNIX computers and other devices that are not connected to the network.
To add an installed software asset:

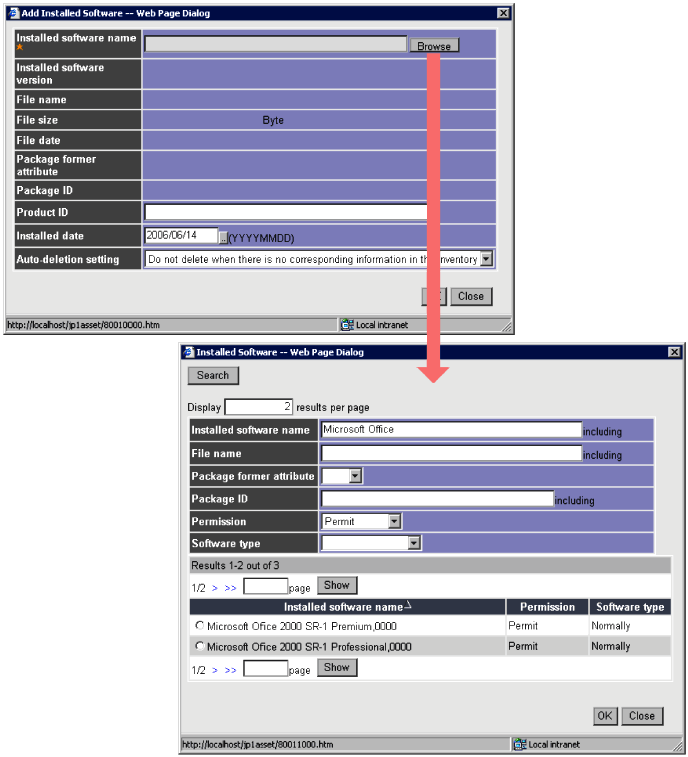

The following figure shows the procedure for adding an installed software asset from the Add Installed Software dialog box.
Figure 2-100 Procedure for assigning an installed software asset
To delete an installed software asset, select its check box and then click the Delete button.
