In the Device tab in the Device Details dialog box, you can view and edit asset information, such as Asset No., User name, and Location, and hardware information, such as Processor and Memory. The following figure shows the Device tab in the Device Details dialog box.

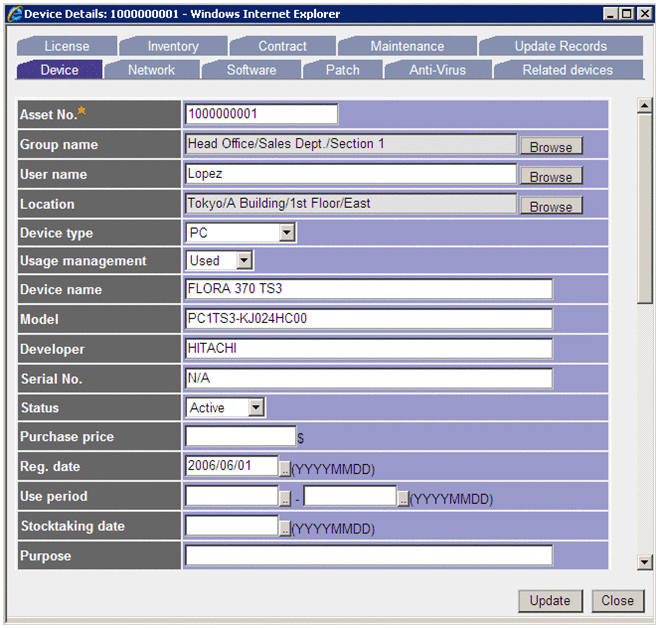

Figure 2-94 Device tab in the Device Details dialog box
You can specify whether or the operation status of the device is to be managed. When operation management is enabled for a device, the device becomes subject to search operations from the Unused Device List job menu.
To enable operation management of a device, set Usage management to Used.
You can change the group using the device and change the location where the device is being used. The values that are changed in the Device Details dialog box are not overwritten even if they differ from the inventory information acquired from JP1/Software Distribution or the node information acquired from HP NNM Version 7.5 or earlier.
However, if you want the values set for the group-specific IP group and location-specific IP group created by using the IP Group job menu to take precedence over the values for the group and location specified in the Device Details dialog box, you can use the Data maintenance task to overwrite the settings with the values corresponding to the IP group. For details about selecting the contents executed by the Data maintenance task, see 5.9.3(3) Changing the tasks to be executed in the Planning and Setup Guide.
You can change the status of a device.
If you change a device's status to Restore, Scrap, or Pre-Scrap, the device's IP address, component information, and installed software information are all deleted the next time the Data maintenance task registered in Windows Task Scheduler is executed. The assigned license key is also released.
This also applies to devices whose status is similarly updated from windows.
By default, you can select from the statuses Stock, Active, Restore, Scrap, Pre-Scrap, and Erase. To change the name of a status or the device statuses that can be selected, see 4.8 Adding and changing types and statuses (Code).
When linked to HP NNM Version 7.5 or earlier, you can use Network Presenter to check the network configuration. To display Network Presenter, click the NNM button.
For details about the settings required to link to HP NNM Version 7.5 or earlier, see 6.1 Settings for linking to HP NNM Version 7.5 or earlier in the Planning and Setup Guide.
