By using the New Device job menu, you can register a new device. You can add devices to be managed by registering, for example, accessories for which information cannot be collected from JP1/Software Distribution and devices that are not connected to the network.
To register a new device, start from the New Device window, which is displayed by clicking the New Device job menu. The following figure shows the New Device window.

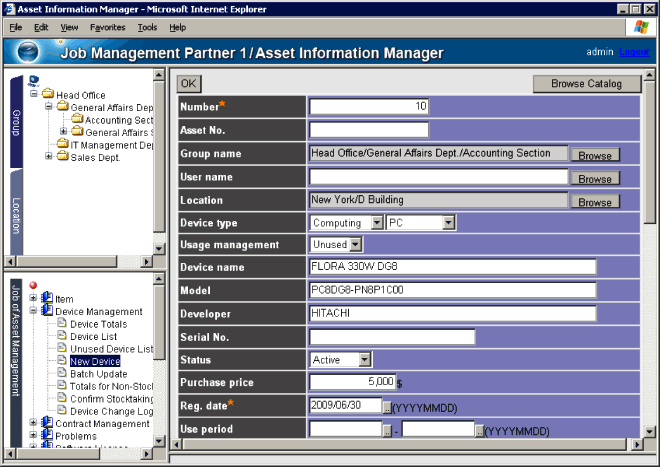

Figure 2-6 New Device window
- Asset numbers when multiple devices are registered
- You can use batch mode to register the same device information for multiple devices by specifying a numeric value in Number. The New Device window enables you to register a maximum of 500 devices at one time.
- When more than one device is registered, the automatically assigned number is registered as the asset number, not a specified value.
- If you want to specify the asset numbers to be assigned, you must register the devices one at a time, and specify the desired value in Asset No. along with any other required command information.
- How to specify the user name
- To specify a user name, either use the Browse button or directly enter the name using a keyboard. The latter method enables you to specify a user name that is not registered in Asset Information Manager.
- However, a user name cannot be directly entered if the user name is already registered. If that is the case, use the Browse button to find the user with that name.
- Organization of this subsection
- (1) How to register information using a device catalog
Device information, such as the CPU and memory size, is predetermined for each product. A device catalog is a collection of these information items registered for a product.
By selecting a product from among the device catalogs, because one or more items will already be set for that product, you can eliminate the time required to enter that information.
For details about registering a device catalog and the items that can be specified, see 4.5 Managing device catalog information (Device Catalog).
To register device information using a device catalog:
- In the upper-right corner of the window, click the Browse Catalog button.
The Browse Device Catalog dialog box is displayed.
- Specify search conditions, as necessary.
Specify one or more of the following: Device type, Device name, Model, and Developer.
- Click the Search button.
A list of catalog entries is displayed. Clicking a column title sorts the list in either ascending order or descending order by that column.
Clicking a link under Device name enables you to view the content of the catalog.
To cancel, click the Close button.
- Select the desired catalog items, and then click the OK button.
The Browse Device Catalog dialog box closes, and the information in the catalog information is specified for the corresponding items.
- Specify each item that cannot be registered from the catalog, and then click the OK button.
Items identified by a star () are mandatory.
The device information is registered based on the specified information.
You can change the information registered here from the Device Details dialog box that is displayed from the search results of a window such as Device List window.
The following figure shows the Browse Device Catalog dialog box in which device catalogs are searched for.

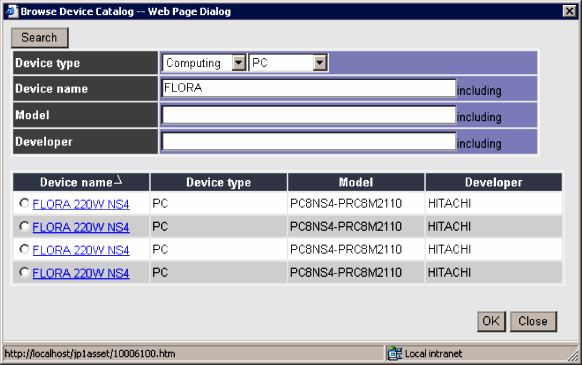

Figure 2-7 Browse Device Catalog dialog box
