Job Management Partner 1/Asset Information Manager Planning and Setup Guide
If user names are managed in JP1/Software Distribution's system configuration information, system information, or user inventory information, you can register that information in the asset management database.
Because the user name is registered as User name of hardware assets acquired from the inventory information, you can save the time for registering the user for each asset.
This section describes the registered information that depends on the assigned item when JP1/Software Distribution's user inventory information is assigned to the user name in asset information, and the procedure for setting an assigned item for user names.
To register user inventory information as asset information User name, select one of the three user inventory items to assign it to the asset information:
The selected item is assigned to the corresponding user information, and User name and User ID are registered in the asset information.

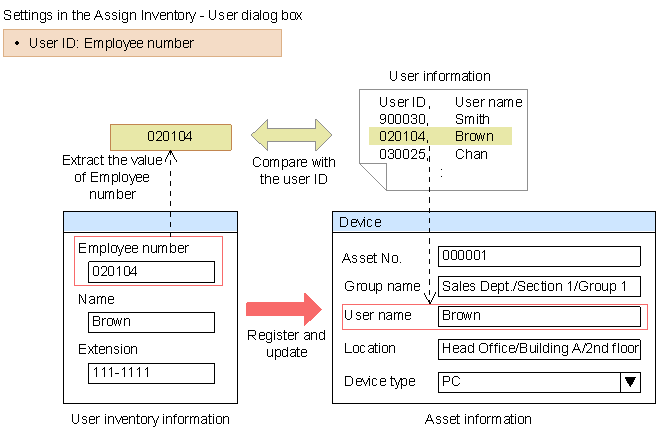

The figure below shows an example when User ID is selected as the assigned item.
Figure 9-41 Example of assigning user name to asset information
If there is no corresponding value in the user information when the item is assigned, the user inventory item itself is registered as is in the asset information User name. For example, if User ID is selected as the assigned item and there is no corresponding user ID in the user information, the user ID is registered in the asset information User name.
The table below shows the correspondence between the item selected as the assigned item and the actual information that is registered when user inventory information is assigned to asset information.
Table 9-2 Correspondence between the item selected as the assigned item and the actual information that is registered
Assigned item | Search item (User information) |
Item to be registered (Asset information) |
Information that is registered | |
---|---|---|---|---|
Corresponding value exists in the user information | No corresponding value exists in the user information | |||
User ID | User ID | User name | User name | User ID |
User ID | User ID | User ID | ||
User name | User name | |||
User ID | User ID | -- | ||
User name | User name | User name | User name | User name |
User ID | User ID | -- |
To set an assigned item for user names, use the Assign Inventory - User dialog box, which is displayed by clicking the Browse button for Asset information.User name in the Assign Inventory window.

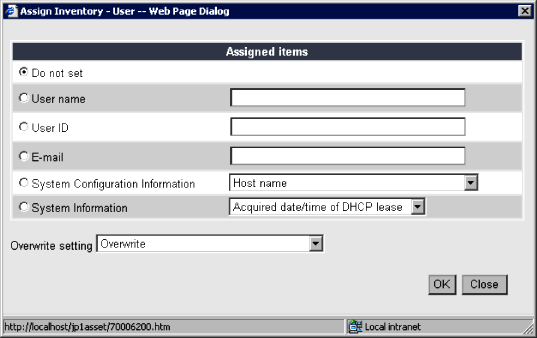

Figure 9-42 Assign Inventory - User dialog box
From the items displayed in the Assign Inventory - User dialog box, select the key item to be used to identify the user name:
Set the update method for the value selected to the item to be assigned to Overwrite setting.
