6.1.5 Displaying asset information from HP NNM Version 7.5 or earlier

To display detailed device information from the Network Presenter or node submap of HP NNM Version 7.5 or earlier:

  1. Select any node from Network Presenter or from a submap window.
  2. Select Manage, and then JP1/AIM Information.
    The Information Viewer dialog box is displayed.

The figure below shows the Information Viewer dialog box displayed from a submap window.

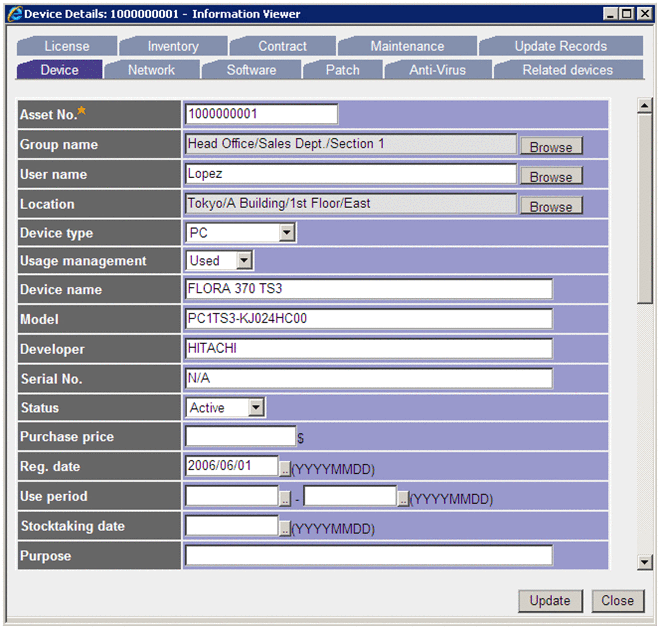

Figure 6-1 Information Viewer dialog box

[Figure]
