This section describes the procedure for setting up the environment for the asset management system. The figure below shows the setup procedure.

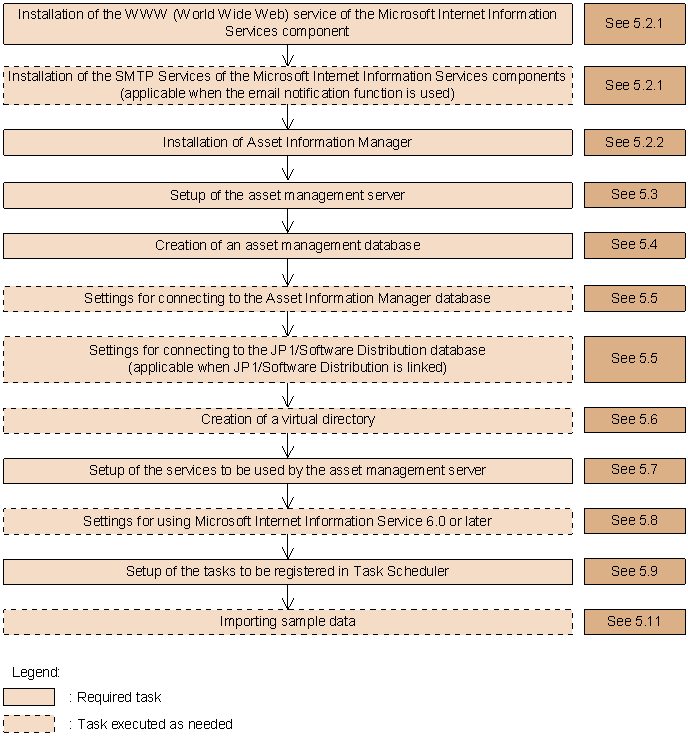

Figure 5-1 Setup procedure

The subsequent sections describe the setup method by following the procedure shown in Figure 5-1.

Note

After setting up the asset management server, you must enable the Data maintenance task that is created in Windows Task Scheduler. For details about the task and its setup method, see 5.9 Setting the tasks that are registered in Task Scheduler.

Hint

To move the data registered in a test environment or the settings made in the system definition, first use the Export job menu and output the information registered in the asset management database and the settings information to a CSV file, and then use the Import job menu to import the information into the target environment. For the operating procedure for the Export and Import job menus, see 4.11 Exporting asset information in CSV format (Export) and 4.10 Changing asset information in a batch operation (Import) in the manual Administrator's Guide.

Organization of this section

5.1.1 Workflow necessary for linking to JP1/Software Distribution
