Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

Appendix G.4 Using HP NNM to monitor transmission results

To use HP NNM's node submap to monitor transmission results:

1. From the Windows Start menu, choose Programs, Network Node Manager, and then Network Node Manager.
   HP NNM starts.

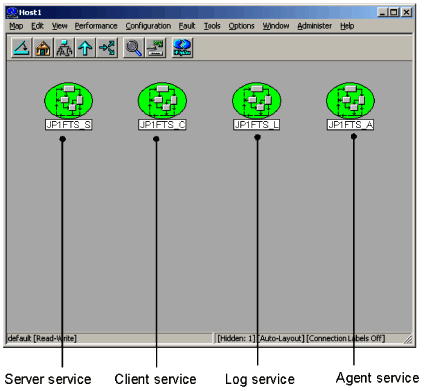

   The following figure shows an example of the node submap that displays the symbols for JP1/FTP.


   Figure G-2 Node submap



Relationships between traps and symbol colors

The following table shows the relationships between traps and the symbol colors.

Table G-1 Relationships between traps and symbol colors

Trap timing	Trap displayed in the event browser (Severity)	Symbol type: Symbol color
JP1/FTP service start	The status of XX has become Normal (Normal)	Started service: Green
Abnormal termination of a file transmission	The status of XX has become Minor (Normal). File name, user name, and card name are displayed.	Corresponding service (client or server): Yellow
Warning termination of a file transmission (auto-start program start error)	The status of XX has become Warning (Normal). File name, user name, card name, and auto-start program name are displayed.	Corresponding service (client or server): Light blue
Service stop	The status of XX has become Critical (Warning)	Stopped service: Red

Legend:

XX: Service name

Display of symbols other than the above

• Immediately after installation
  There is no symbol (initial status). If HP NNM was linked previously, the color for the last trap sent during the previous operation remains in effect (this is usually red, indicating service stop). However, no trap might have been sent, depending on the computer status during the service stop and shutdown, in which case the color will not be red.

• When file transmission terminated normally after another file transmission terminated abnormally or with a warning
  The symbol color for the corresponding service (client or server) remains the same as for the abnormal termination or termination with a warning. To change the symbol color to green (running, no abnormal termination or termination with a warning), from the Administer menu, choose JP1 Manager, Initialize Symbols, and then Normal.

• When file transmissions alternated between abnormal termination and termination with a warning
  The symbol colors alternate.
