Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

4.3.3 Example of displaying log information

This example displays the log information for the New York headquarters.

To display log information:

1. In the tree window, click the Func tab at the bottom.
   Information is displayed in the tree window by function.

2. In the tree window, double-click Log Information.
3. Select New York under the log information, and then click .
   Log information is displayed in the list window.


To display only specific log information:

In the list window, click . In the displayed dialog box, specify a condition for displaying information.

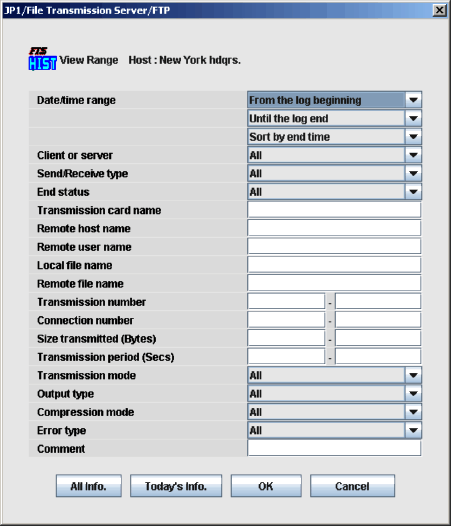

Figure 4-10 Dialog box for displaying specific information
