Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

4.2.4 Transmission Registration window

The figure below shows an example of a window that displays from the Operations-Manager Console the transmission information registration details at another host. This subsection describes the functions that you can use in the Transmission Registration window.

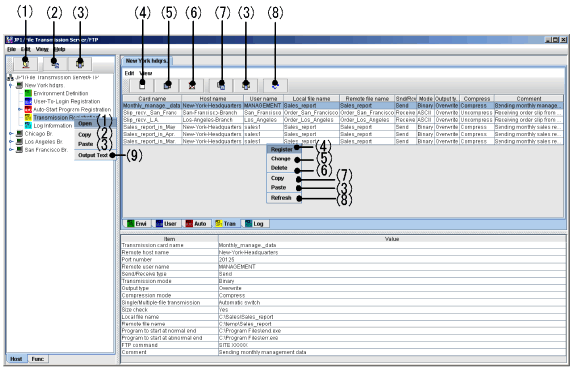

Figure 4-6 Transmission Registration window

1. Click , or right-click in the tree window: Opens host information.
2. Click , or right-click in the tree window: Copies all transmission definition information.
3. Click , or right-click in the tree or list window: Pastes the copied information.
4. Click , or right-click in the list window: Registers new transmission information.
5. Click , or right-click in the list window: Changes registered transmission information.
6. Click , or right-click in the list window: Deletes transmission information.
7. Click , or right-click in the list window: Copies the specified transmission information.
8. Click , or right-click in the list window: Refreshes information.
9. Right-click in the tree window: Outputs the transmission information as text.

Notes

• When Cancel is clicked while Register or Change processing is underway, the message Canceled is displayed, but the registration or change processing might have already been completed.
• Transmission information cannot be copied between Windows hosts and UNIX hosts that have been set as managed hosts.
