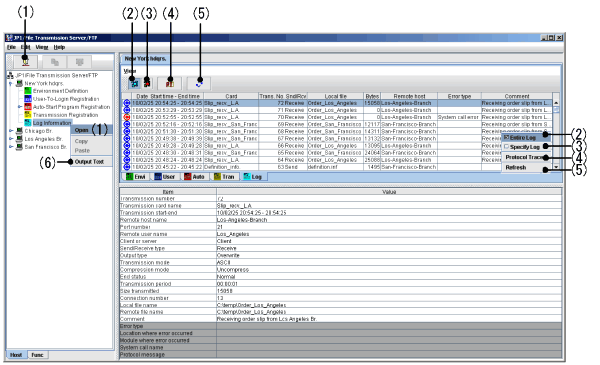

The figure below shows an example of a window that displays from the Operations-Manager Console another host's log information. This subsection describes the functions that can be used in the Log Information window.
Figure 4-7 Log Information window
- Click , or right-click in the tree window: Opens host information.
- Click , or right-click in the list window: Displays all log information.
- Click , or right-click in the list window: Displays specific log information.
- Click , or right-click in the list window: Displays protocol trace.
- Click , or right-click in the list window: Refreshes information.
- Right-click in the tree window: Outputs log information as text.
- Notes
- If there are multiple logs with the same time, the order in which the information is displayed in the Operations-Manager Console's Log Information window might be different from the display order in the stand-alone Log Information window.
- The Log Information window displays all trace information, even if there is a trace of a transmission. This differs from when a protocol trace is displayed from the Windows Start menu by choosing Programs, JP1_File Transmission Server_FTP, and then Log Information.
- The Operations-Manager Console does not support a transmission size of 4 gigabytes or greater. If an attempt is made to reference a transmission log whose transmission size is 4 gigabytes or greater, the displayed value will be smaller than the actual transmission size.
