Job Management Partner 1/File Transmission Server/FTP Description, Reference and Operator's Guide

4.2.3 Auto-Start Program Registration window

The figure below shows an example of an Auto-Start Program Registration window that displays from the Operations-Manager Console the registration status of the auto-start programs at another host. This subsection describes the functions that you can use in the Auto-Start Program Registration window.

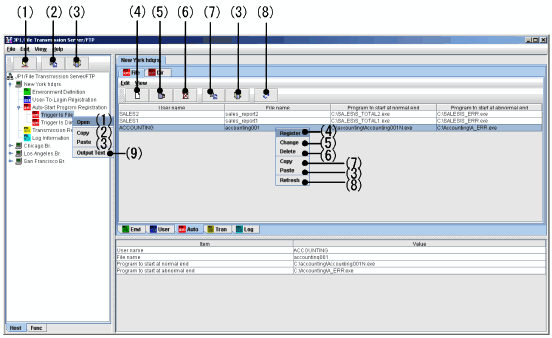

Figure 4-5 Auto-Start Program Registration window (for files)

1. Click , or right-click in the tree window: Opens host information.
2. Click , or right-click in the tree window: Copies all auto-start program definition information.
3. Click , or right-click in the tree or list window: Pastes the copied information.
4. Click , or right-click in the list window: Registers new auto-start programs.
5. Click , or right-click in the list window: Changes the registration details of auto-start programs.
6. Click , or right-click in the list window: Deletes auto-start programs.
7. Click , or right-click in the list window: Copies information about a specified auto-start program.
8. Click , or right-click in the list window: Refreshes information.
9. Right-click in the tree window: Outputs information about auto-start programs as text.

Notes

• When Cancel is clicked while Register or Change processing is underway, the message Canceled is displayed, but the registration or change processing might have already been completed.
• If the manager agent is UNIX, whether the login user name has been registered is not checked when auto-start programs are registered.
• Information about auto-start programs cannot be copied between Windows hosts and UNIX hosts that have been set as managed hosts.
