Job Management Partner 1/Automatic Job Management System 3 - Web Operation Assistant Description, Operator's Guide and Reference

6.4.4 Settings frame (Color mapping)

This frame sets the color of each status.

The following figure shows the frame for setting the status color.

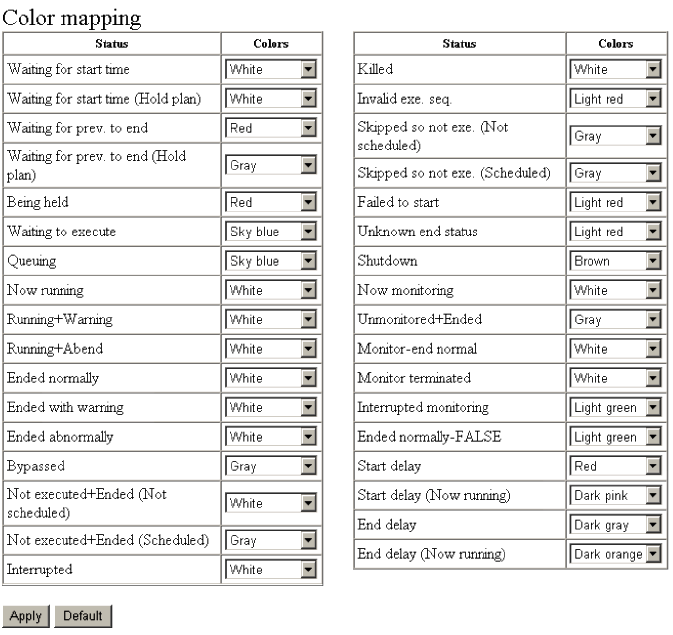

Figure 6-21 Frame for setting the status color

Organization of this subsection

(1) Selecting the display color

(2) Apply button

(3) Default button

(1) Selecting the display color

For each one of the following statuses displayed, select the display color from the drop-down list:

Waiting for start time

Waiting for start time (Hold Plan)

Waiting for prev. to end

Waiting for prev. to end (Hold Plan)

Being held

Waiting to execute

Queuing

Now running

Running + Warning

Running + Abend

Ended normally

Ended with warning

Ended abnormally

Bypassed

Not executed + Ended (not Scheduled)

Not executed + Ended (Scheduled)

Interrupted

Killed

Invalid exe. seq.

Execution deferred (not Scheduled)

Execution deferred (Scheduled)

Failed to start

Unknown end status

Shutdown

Now monitoring

Unmonitored + Ended

Monitor-end normal

Monitor terminated

Interrupted monitoring

Ended normally - FALSE

Start delay

Start delay (Now running)

End delay

End delay (Now running)

From the drop-down list, select from the following colors:

Sky blue

Yellow

Green

Light green

Red

Light red

Brown

Orange

Dark orange

Pink

Dark pink

Gray

Dark gray

White

(2) Apply button

Clicking this button saves the settings displayed in the frame.

The changes in the settings take effect when you return to the Monitor window by clicking the Return to Status View hyperlink in the item selection frame or when you log on next time.

(3) Default button

Clicking this button returns the settings displayed in the frame to the defaults (for details about the defaults, see 4.3 Environment settings changeable in the User Environment Settings window). Clicking this button just changes the displayed settings, and does not save them. Click the Apply button to save the settings.
