6.3.6 Operation results frame

The operation results frame displays the results of operation that is executed by clicking an operation button.

The following figure shows the operation results frame.

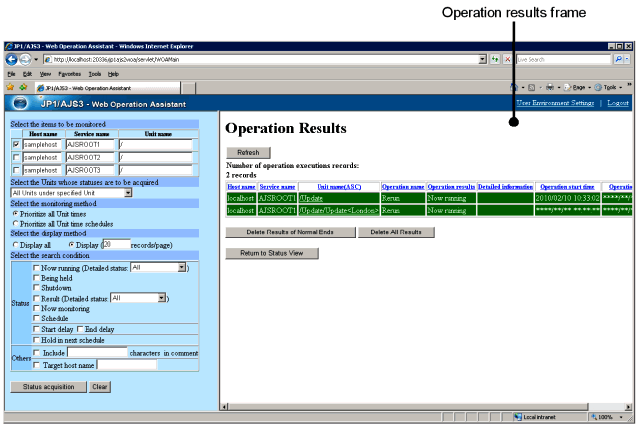

Figure 6-16 Operation results frame

Organization of this subsection

(1) Operation Results list

(2) Buttons

(3) Display items

(1) Operation Results list

Operation executions records:

Displays the number of rows of data for which the operation was performed.

Host name

Displays the host name for the row data.

Service name

Displays the scheduler service name for the row data.

Unit name

Displays the unit name for the row data.

Operation name

Displays the details about the operation performed for the row data.

Operation results

Displays one of the following as the operation result:

Now running

Ended normally

Ended abnormally

Note that what is displayed here is the result of the operation, not the status of the unit after the operation.

Detailed Information

An error message appears if the operation ended abnormally.

(2) Buttons

Refresh button

Displays the latest operation results.

Return to Status View button

Returns to the statuses frame. At this time, the latest information is acquired.

Delete Results of Normal Ends button

Deletes all the data for the operation that ended normally from the operation results list. The deleted data will no longer be displayed.

Delete All Results button

Deletes all the data for the operation whose status is not Now running from the operation results list. The deleted data will no longer be displayed.

During processing of these buttons, the buttons in the operation results frame and the Status acquisition button are disabled, so that more than one processing cannot be performed.

(3) Display items

(a) For the operation results frame displayed from the operation confirmation frame

The frame only displays the result of operation performed at this time.

(b) For the operation results frame displayed from the statuses frame

The frame displays the results of all the operations performed after the logon. The frame does not contain the results which are deleted by using the Delete Results of Normal Ends or Delete All Results button.
