6.3.4 Statuses frame

The statuses frame displays a list of the statuses that are acquired according to the specified conditions.

From this frame, you can start JP1/AJS3 - View or JP1/AJS2 - View and re-execute operations.

The following describes the difference between the initial window and the window displayed by clicking the Display Selected on Status View button in the status confirmation frame to show the units on which operations were performed the previous time:

Background color of the window (the background color is pale yellow for the window that displays the units on which operations were performed the previous time).

Displayed buttons (see (1) Operation buttons.)

The title line indicating the number of acquired status records (see (4) Status list.)

The following figure shows the statuses frame:

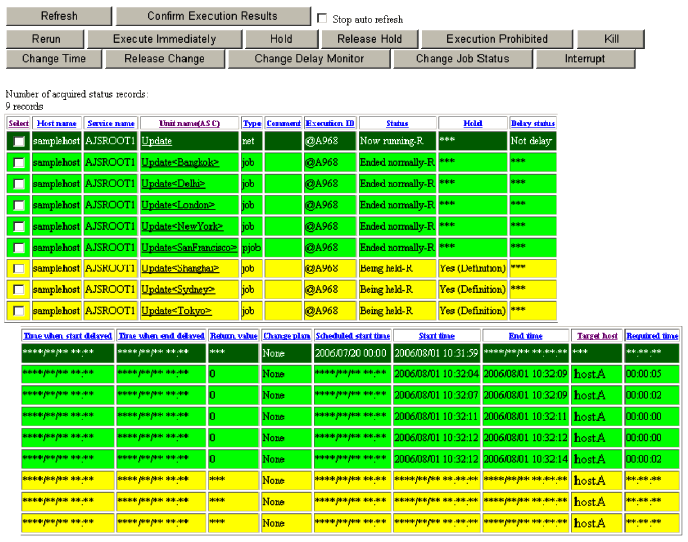

Figure 6-8 Statuses frame (initial window)

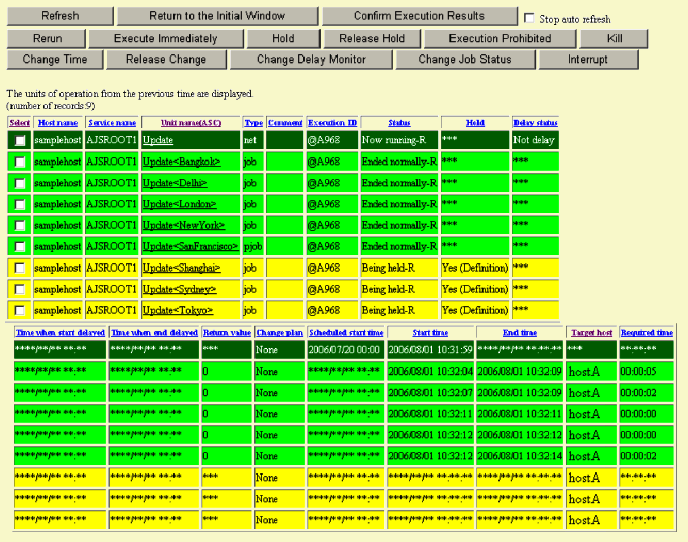

Figure 6-9 Statuses frame (window that displays the units that were used previously)

Organization of this subsection

(1) Operation buttons

(2) Auto refresh toggle check box

(3) Error information list

(4) Status list

(1) Operation buttons

Refresh button

Re-acquires the latest information with the same conditions with which the existing information was acquired.

Return to the Initial Window button

Displays the initial window of the statuses frame.

The Return to the Initial Window button is displayed only when the statuses frame shows the units on which operations were performed the previous time and the frame for setting status acquisition conditions is not set to be displayed.

Confirm Operation Results button

Displays the operation results frame.

Rerun button

Re-executes the operation for the row data for which the Select check box is selected in the status list.

Execute Immediately button

Temporarily changes the execution schedule for the row data for which the Select check box is selected in the status list, so that the jobnet is executed immediately.

Hold button

Temporarily holds the row data for which the Select check box is selected in the status list.

Release Hold button

Temporarily releases the hold status for the row data for which the Select check box is selected in the status list.

Execution Prohibited button

Temporarily cancels the execution for the row data for which the Select check box is selected in the status list.

Kill button

Performs a forced termination for the row data for which the Select check box is selected in the status list.

Change Time button

Changes the start date and time for the row data for which the Select check box is selected in the status list.

Release Change button

Releases the change for the row data for which the Select check box is selected in the status list.

Change Delay Monitor button

Changes the delay monitor setting for the row data for which the Select check box is selected in the status list.

Change Job Status button

Changes the job status for the row data for which the Select check box is selected in the status list.

Interrupt button

Performs an interrupt for the row data for which the Select check box is selected in the status list.

(2) Auto refresh toggle check box

Selecting the Stop auto refresh check box temporarily disables Auto refresh for the statuses frame. Clear the check box to resume Auto refresh.

(3) Error information list

Host name

Displays the name of the monitoring target host for which an error occurred during status acquisition.

Service name

Displays the name of the monitoring target scheduler service for which an error occurred during status acquisition.

Unit name

Displays the name of the monitoring target unit for which an error occurred during status acquisition.

Errors

Displays information about the error that occurred during status acquisition.

The error information list only appears in the window immediately after the statuses are acquired. If the status list is divided and displayed over several pages, the error information does not appear when you display the next or previous page.

(4) Status list

Number of acquired status records:

Displays the total number of records in the results of status acquisition regardless of the specified display method.

When the statuses frame is displayed by choosing the Display Selected on Status View button in the status confirmation frame, The units of operation from the previous time are displayed. (number of records: N)^# appears on this line.

#

N indicates the number of displayed units.

Hyperlinks to the previous and next pages

If you specify Display (*** records/page) for the display method of the status list, the hyperlinks to the previous and next pages appear. These links are not displayed unless the previous or next page exists.

Item row

Clicking the Select hyperlink an odd number of times on the item row selects all the check boxes on the rows. Clicking this hyperlink an even number of times clears all the check boxes on the rows.

Clicking any other hyperlinked item name sorts the data in the column in ascending order. Then, each time you click the hyperlinked item name, the data in the column is sorted in descending and ascending order in turn.

Clicking the Status hyperlink sorts the data in the column in the following order.

Sort order Status name

1 First ascending order item Unrecognizable^#1

2 Queuing^#2

3 Now running^#2

4 Now monitoring

5 Ended normally^#2

6 Bypassed^#2

7 Skipped so not exe.

8 Unmonitored + Ended

9 Monitor-end normal

10 Monitor terminated

11 Ended normally-FALSE

12 Interrupted monitoring

13 Running + Warning^#2

14 Ended with warning^#2

15 Running + Abend^#2

16 Ended abnormally^#2

17 Not executed + Ended^#2

18 Interrupted^#2

19 Killed^#2

20 Invalid exe. seq.

21 Failed to start^#2

22 Unknown end status^#2

23 Shutdown

24 Waiting for start time^#2

25 Waiting for prev. to end

26 Being held^#2

27 First descending order item Waiting to execute

#1

A state in which an attempt to acquire the unit status has failed

#2

Same status names with different suffixes (-R, -W, or -WR) are sorted in the following order.

Sort order Status name

1 First ascending order item status

2 status -R

3 status -W

4 First descending order item status -WR

Select check box

When you click an operation button, the operation will be performed for the row data for which the Select check box is selected.

However, note that this check box is disabled and the unit cannot be selected for operation if either of the following occurs:

The unit name contains an asterisk (*), question mark (?), yen sign (\), double quotation mark ("), back quotation marks (`), or brackets ([ ]).

The unit type or status is unknown.

Host name

Displays the host name for the row data.

Service name

Displays scheduler service name for the row data.

Unit name

Displays unit name for the row data.

If you have specified the user environment settings to make a hyperlink of the unit name, the unit name is displayed as a hyperlink. Click the hyperlink to start JP1/AJS3 - View or JP1/AJS2 - View for that row data.

Type

Displays the unit type for the row data. The following symbols are displayed as unit types:

Symbol Unit type

condn Start Condition Jobnet (.CONDITION)

net Jobnet

rnet Recovery Jobnet

rmnet Remote Jobnet

rrnet Recovery Remote Jobnet

job UNIX Job

rjob Recovery UNIX Job

pjob PC Job

rpjob Recovery PC Job

qjob Queue Job

rqjob Recovery Queue Job

netcn Jobnet Connector

jdjob Judgment Job

rjdjob Recovery Judgment Job

orjob OR Job

rorjob Recovery OR Job

cmsjb OpenView Status Report Job

rcmsjb Recovery OpenView Status Report Job

evwjb Receive JP1 Event Job

revwjb Recovery Receive JP1 Event Job

flwjb Monitoring Files Job

rflwjb Recovery Monitoring Files Job

mlwjb Receive Mail Job

rmlwjb Recovery Receive Mail Job

mqwjb Receive MQ Message Job

rmqwjb Recovery Receive MQ Message Job

mswjb Receive MSMQ Message Job

rmswjb Recovery Receive MSMQ Message Job

lfwjb Monitoring Log Files Job

rlfwjb Recovery Monitoring Log Files Job

ntwjb Monitoring Event Log Job

rntwjb Recovery Monitoring Event Log Job

tmwjb Interval Control Job

rtmwjb Recovery Interval Control Job

evsjb Send JP1 Event Job

revsjb Recovery Send JP1 Event Job

mlsjb Send Mail Job

rmlsjb Recovery Send Mail Job

mqsjb Send MQ Message Job

rmqsjb Recovery Send MQ Message Job

mssjb Send MSMQ Message Job

rmssjb Recovery Send MSMQ Message Job

pwljb Local Power Control Job

rpwljb Recovery Local Power Control Job

pwrjb Remote Power Control Job

rpwrjb Recovery Remote Power Control Job

cuujb Custom UNIX Job

rcuujb Recovery Custom UNIX Job

cupjb Custom PC Job

rcupjb Recovery Custom PC Job

hlnet Host Link Jobnet

When you move the mouse cursor to a symbol, the corresponding unit type pops up as shown in the following figure:

Comment

Displays the comment for the row data.

Execution ID

Displays the execution ID for the row data.

Status

Displays the status of the row data.

Hold

Displays one of the following as the hold attribute that is scheduled for the next execution of the row data:

Display Description

Yes(Definition) Scheduled to be held by the definition of the hold attribute

Yes(Temporarily changes) Scheduled to be held by the temporary change of the hold attribute

No Does not hold.

*** Execution has already started.

If you have specified Hold only for previous abend or Hold only for previous warning for the hold attribute of the root jobnet, the system assumes No and obtain the hold schedule.

Delay status

Displays the delay status of the row data as one of the following:

Not delay

Start delay

Nested Jobnet delayed start

End delay

Nested Jobnet delayed end

Time when start delayed

Displays the date and time when a delayed start for the row data is detected.

****/**/** **:** is displayed when Do not monitor is selected for Delayed start.

Time when end delayed

Displays the date and time when a delayed end for the row data is detected.

****/**/** **:** is displayed when Do not monitor is selected for Delayed end.

Return value

Displays the return value of the row data.

*** is displayed for other than a job.

Change plan

Displays whether the row data was changed and the contents of the change.

Change time

Temporary linkage change

Previous execution prohibited

None

*** is displayed when the scheduler database to be monitored is ISAM.

Scheduled start time

Displays the scheduled start date and time for the row data.

****/**/** **:** is displayed for a job.

The scheduled date and time are displayed without change as the scheduled start date and time.

Start time

Displays the start date and time or the re-execution start date and time for the row data.

****/**/** **:**:** is displayed if the execution has not started yet.

End time

Displays the end date and time for the row data.

****/**/** **:**:** is displayed if the execution has not ended yet.

Target host

Displays the target host name for the row data.

*** is displayed for other than a job and for a job whose execution has not started on the target agent host.

Required time

Displays the amount of time required for execution for the row data.

**:**:** is displayed if the execution has not ended yet.

Note

There are the following differences depending on whether the database type is embedded database (or HiRDB) or ISAM:

Table 6-2 Functional differences for the database type of the scheduler service to be monitored

Status Embedded database ISAM

Hold is displayed in the status list. Displays the following items:

Yes(Temporarily changes)

Yes(Definition)

No

Displays the following items:

Yes

No

The job shown in the status list is ended without being executed. The background color for the row data follows the specification of Not executed + Ended(not Scheduled) or Not executed + Ended(Scheduled) in the settings frame for color mapping in the User Environment Settings window. The background color for the row data follows the specification of Not executed + Ended(not Scheduled) in the settings frame for color mapping in the User Environment Settings window.

In the frame for setting status acquisition conditions, the Start delay check box is selected and the Status Acquisition button is clicked. The status can be acquired. The status cannot be acquired if the jobnet is in one of the following delay status:

No Start delay, Nested Jobnet delayed start, End delay, and Nested Jobnet delayed end

No Start delay, Nested Jobnet delayed start, End delay, and No Nested Jobnet delayed end

No Start delay, Nested Jobnet delayed start, No End delay, and Nested Jobnet delayed end

The status of the unit for which a JP1 resource group is set is to be acquired. Permission for acquiring the unit status follows the permission for the JP1 resource group set for each unit, regardless of the permission of the OS user mapped to the logged-on JP1 user. Permission for acquiring the unit status ignores the JP1 resource group set for each unit if the OS user mapped to the logged-on JP1 user is a member of the Administrators group (or has the root privilege).

Change plan is displayed in the status list. Displays in the status list whether the row data was changed and the contents of the change. Always displays *** in the status list.
