15.11.2 Set Properties of Custom Job dialog box

The Set Properties of Custom Job dialog box defines information about a custom job to be registered.

For details about the types of custom jobs (standard custom job, custom PC job, and custom Unix job), see 3. Adding Custom Jobs in the Job Management Partner 1/Automatic Job Management System 3 Linkage Guide.

The following figure shows the Set Properties of Custom Job dialog box.

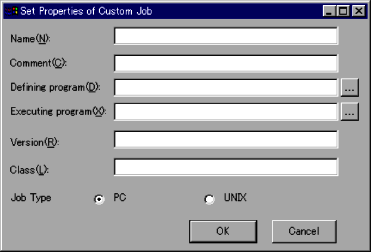

Figure 15-198 Set Properties of Custom Job dialog box

The following explains the displayed items.

Name

Specify a custom job name. Use a character string of up to 8 bytes. The default is a blank.

Comment

Specify a comment. Use a character string of up to 40 bytes. The default is a blank. A specified comment is displayed at Unit name in the Define Details - [Custom Job] dialog box under the job name of the custom job under JP1/AJS3 - View.

For a comment, you cannot use a slant (/) and a blank character.

Defining program

Specify the full path name of a defined program to be linked to a standard custom job. The defined program must be placed on a JP1/AJS3 - View host. You must specify this item for a standard custom job. For a custom PC job, specify any character string. You cannot specify this item for a custom Unix job.

You can select a file name from the dialog box displayed when you click the ... button.

Executing program

Specify a target program (.exe) to be linked to a standard custom job. Specify a target program on the same host as for JP1/AJS3 - Manager or JP1/AJS3 - Agent. You must specify this item for a standard custom job. For a custom PC job, specify any character string. You cannot specify this item for a custom Unix job. You can select a file name from the dialog box displayed when you click the ... button.

The target program may be located on multiple JP1/AJS3 - Agent hosts, with the installation path being different. In this case, you specify $xxx$\executable-file-name, where the xxx part refers to a variable. You must register (define) variables in the JP1/AJS3 - Agent host. For details about how to register variables, see 6.2.1 Defining variables for work paths used during job execution in the Job Management Partner 1/Automatic Job Management System 3 Configuration Guide 1 (for Windows) or 14.2.1 Defining variables for work paths used during job execution in the Job Management Partner 1/Automatic Job Management System 3 Configuration Guide 1 (for UNIX).

Version

Set 0600.

Class

Specify a class name for each of the programs being linked. You can specify the following items.

For the standard custom jobs
JP1/FTP: JP1FTP
JP1/AJS3 for Enterprise Applications: JP1AMR3
JP1/AJS3 for Enterprise Applications: JP1AMR3BW
JP1/AJS2 for Oracle E-Business Suite: JP1AMOAP

For the custom PC jobs and custom Unix jobs
Specify a character string consisting of up to 16 bytes in the USER_arbitrary-name format, where the USER_ part is required.

Do not enter a return code by pasting it. If the entry includes a return code, no custom job icons are displayed in the icon list of the Jobnet Editor window.

If no custom job icons are displayed, use the following procedure:

Delete all the files in the following custom job property folders except for Cjobregm.exe.
- For Windows 7, Windows Server 2008, and Windows Vista:
%ALLUSERSPROFILE%\Hitachi\JP1\JP1_DEFAULT\JP1AJS2V\custom.dir
The default value for %ALLUSERSPROFILE% is system-drive\ProgramData.
- For Windows Server 2003 and Windows XP Professional:
JP1/AJS3 - View-installation-folder\custom.dir

Re-register all custom jobs.

Job Type

For a standard custom job, select PC as the type of a job being executed. To execute a custom PC job, select PC. To execute a custom Unix job, select UNIX.

The default is PC.

The item displayed in the Definition page in the Define Details - [Custom Job] dialog box depends on the selected job type. For the displayed items, see 15.4.36 Define Details - [Custom Job] dialog box.
