Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.4.36 Define Details - [Custom Job] dialog box

The Define Details - [Custom Job] dialog box defines the details on a custom job provided by the windows version of JP1 series programs.

You can define the following custom jobs.

JP1FTP

JP1AMR3

JP1AMR3BW

JP1AMOAP

Cautionary note

You cannot specify any job other than shown above.

This dialog box contains the items displayed in common, and also contains the following pages:

Definition page

Attributes page

Organization of this subsection

(1) Items displayed in common

(2) Definition page

(3) Attributes page

(1) Items displayed in common

The following figure shows the items displayed in common.

Figure 15-166 Items displayed in common in the Define Details - [Custom Job] dialog box

The following explains the items displayed in common.

Unit name

Specify a unit name. Use a character string of up to 30 bytes. The default depends on the defined custom job.

Comment

Specify a comment for the unit. Use a character string of up to 80 bytes. The default is a blank.

Exec-agent

Specify the execution agent name or execution agent group name to be assigned the task of custom job execution. Use a character string of up to 255 bytes. The default is a blank.

(2) Definition page

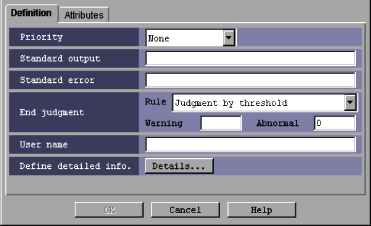

The following figure shows the Definition page (for a PC job) in the Define Details - [Custom Job] dialog box for the standard custom jobs. The items displayed in this Definition page for the custom PC jobs are the same as in the Define Details - [PC Job] dialog box. For details, see 15.4.7 Define Details - [PC Job] dialog box.

The items displayed in the Definition page for the Unix job are the same as in the Define Details - [UNIX Job] dialog box. For details, see 15.4.6 Define Details - [UNIX Job] dialog box.

Figure 15-167 Definition page in the Define Details - [Custom Job] dialog box

The following explains the displayed items.

Priority

Select the priority of job execution. You can set None, or 1 to 5. The highest priority is 5. The default is None.

When None is selected, the priority depends on the definition of the upper-level jobnet. If None is specified for the relevant job and all its upper-level jobnets up to the highest one, 1 is assumed as the priority.

Standard output

Specify the name of the standard output file to be used for job execution. Use a character string of up to 511 bytes. Specify a full path file name. The default is a blank.

Standard error

Specify the name of the standard error output file to be used for job execution. Use a character string of up to 511 bytes. Specify a full path file name. The default is a blank.

End judgment

Select conditions for end judgment.

Rule

The displayed items vary depending on the rule selected in the Rule drop-down list. In the initial status, Judgment by threshold is selected and the thresholds for the Warning and Abnormal levels are displayed. You can select one of the following rules for end judgment.

Always normal
Always terminates the custom job normally. You can specify neither Warning nor Abnormal.

Always abnormal
Always terminates the custom job abnormally. You can specify neither Warning nor Abnormal.

Normal if specified file exists
Ends normally the custom job if the file specified in the File name text box that appears below the drop-down list exists. You can use a character string of up to 511 bytes to specify a file. The default is a blank.

Normal if file was updated
Ends normally the custom job if the file set in the File name text box that appears below the drop-down list is updated. You can use a character string of up to 511 bytes to specify a file. The default is a blank.

Judgment by threshold
Define reference values for the normal end and the warning end, or for the normal end and the abnormal end. In the Warning and Abnormal text boxes, you can set 0 to 2,147,483,647.The default is a blank for Warning, and 0 for Abnormal.
By default, the system assumes an abnormal end if the return code is other than zero. If you set Warning, the system assumes a normal end if the return code is from zero to the value of Warning. It assumes warning end if the return code is larger than the value of Warning. If you set Abnormal, the system assumes a normal end if the return code is from zero to the value of Abnormal. It assumes an abnormal end if the return code is not larger than -1 or larger than the value of Abnormal. If you specify both Warning and Abnormal, the system assumes as follows:
Normal end: The return code is from zero to the Warning value
Warning end: The return code is larger than the Warning value but not larger than the Abnormal value
Abnormal end: The return code is not larger than -1 or larger than the Abnormal value.
In UNIX, the return codes only have positive values from 0 to 255.
If the program exits with a negative value, the return code is assumed to be 256 + (exit code). For example, if the program exists with -1, the system assumes 256 - 1 = 255.

User name

Specify the OS user name of JP1/AJS3 - Agent for job execution. Use a character string of up to 63 bytes. The default is a blank.

You must map this user to User who registered or User who owns for Executed by. By default, the primary user in the user mapping is applied for execution. For details about the user mapping, see the Job Management Partner 1/Base User's Guide.

Define detailed info.

If you click the Details button, the window for defining a program to be linked appears. For details about the items displayed in this window, see the program documentation.

(3) Attributes page

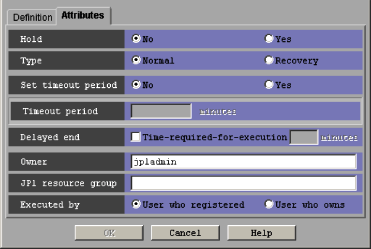

The following figure shows the Attributes page in the Define Details - [Custom Job] dialog box.

Figure 15-168 Attributes page in the Define Details - [Custom Job] dialog box

The following explains the displayed items.

Hold

Specify whether to place the unit in the hold status in advance. You can select No or Yes. The default is No.

Type

Set the unit type to Normal or Recovery. The default is Normal.

Set timeout period

Select whether to set a time-out period for job execution. You can specify No or Yes. The default is No.

Timeout period

If you select Yes in Set timeout period, specify a time-out period in minutes. You can set 1 to 1,440 minutes. The default is a blank.

Delayed end

Specify whether to monitor delayed end of jobs based on time required for execution. Select the Time-required-for-execution check box to monitor delayed end of jobs. The check box is not selected by default.

When you select the Time-required-for-execution check box, specify the time required for execution for a job from 1 to 1,440 (in minutes).

This section appears for the JP1/AJS3 - View, or JP1/AJS2 - View of version 08-50 or later. For details about cautionary notes on monitoring of delayed end of jobs based on time required for execution, see 5.1(3) End delay monitoring based on time-required-for-execution in the Job Management Partner 1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

Owner

Specify the owner of the unit. Use a character string of up to 31 bytes. The default is the login JP1 user name.

JP1 resource group

Specify a JP1 resource group name. Use a character string of up to 63 bytes. You can specify alphanumeric characters and underscores (_). The default is the JP1 resource group name of the upper-level unit. If you specify a blank, you are not authorized to access this group.

Executed by

Select the user who executes the job. The default is User who registered. You can select either of the following.

User who registered
The JP1 user who registered the job executes the job.

User who owns
The JP1 user who owns the job executes the job.
