The Monitoring Unit Select dialog box allows you to select the jobnets to be monitored in the JP1/AJS3 - View window (Summary Monitor window) or the displays sequence of the jobnets. The following figure shows the Monitoring Unit Select dialog box.

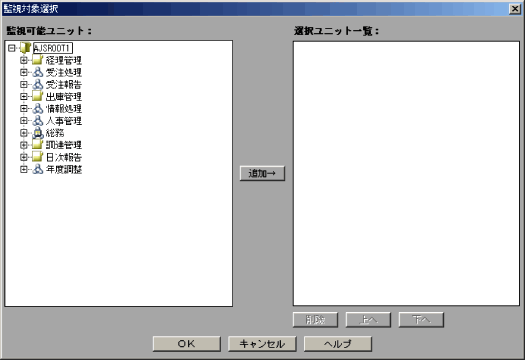

Figure 15-81 Monitoring Unit Select dialog box
The following explains the displayed items.
- Selectable units
- Displays the units and scheduler services you can select as monitoring targets in a hierarchical format. A maximum of 20 scheduler services can be displayed. The following types of units are displayed here:
- Job group#1, #2
- Planning group
- Root jobnet
- Root remote jobnet
- #1
- Includes the job groups that are automatically generated on the execution target host of a remote jobnet.
- #2
- Job groups themselves cannot be specified as monitoring targets. When you select a job group in Selectable units and click the Add button, the jobnets and planning job groups under the selected job group appear in Monitored units.
- Monitored units
- Lists the units that can be monitored from the JP1/AJS3 - View window (Summary Monitor window). A unit is displayed in the following format in this section:
- unit-name [scheduler-service-name:upper-unit-full-name]
- Add button
- Moves the unit selected in Units that can be selected to Monitored units.
- Delete button
- Deletes a unit selected in Monitored units. Once a unit is deleted from this section, that unit is not monitored.
- Up button
- Moves the unit selected in Monitored units one line above.
- Down button
- Moves the unit selected in Monitored units one line down.
