Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.3.45 Multi-execution Results dialog box

In the Multi-execution Results dialog box, you confirm the details of errors generated during operations on multiple units or multiple generations. If no error occurs, this dialog box does not appear. The following figure shows the Multi-execution Results dialog box:

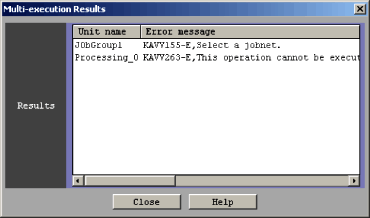

Figure 15-80 Multi-execution Results dialog box

The following explains the displayed item.

Results

Lists the details about errors if errors occur during operation of multiple units or multiple generations.

Unit name

Displays the name of the unit with an error.

Group name^#

Displays the full path of the upper-most unit containing the unit with the error.

Execution ID^#

Displays the execution ID of the unit with the error. If the execution ID of the unit with the error cannot be determined because the unit is not registered or it is in the Not sched. to exe. status, this column displays a blank. The column displays None if the unit with the error is a dummy-schedule generation.

Error message

Displays the error message that describes the error.

#

This item might not be displayed depending on the area where multiple units or multiple generations are manipulated.

Supplementary note

When you click the Unit name, Group name, Execution ID, or Error message header, the sequence of results is changed.
