Job Management Partner 1/Automatic Job Management System 3 Operator's Guide
Launching JP1/AJS3 - View displays the Login screen. Use this screen to log into JP1/AJS3 - Manager.
The following figure shows the Login screen.

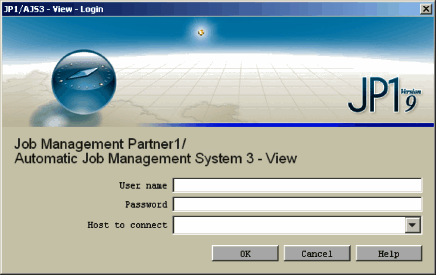

Figure 15-2 Login screen
The following explains the displayed items.
- User name
- Specify the name of a JP1 login user.
- Password
- Specify the password for the JP1 user to be logged in. The characters you are entering will not be displayed; instead, as many asterisk (*) symbols appear.
- Host to connect
- Specify the name of a JP1/AJS3 - Manager host you want to connect. The default is the name of the previously connected JP1/AJS3 - Manager host. Specify a blank for the first login. The dropdown list displays up to ten JP1/AJS3 - Manager host names that were connected in the past.
If you enter the above items and click the OK button, the JP1/AJS3 - View window appears.
