Job Management Partner 1/Automatic Job Management System 3 Operator's Guide

15.1 Windows

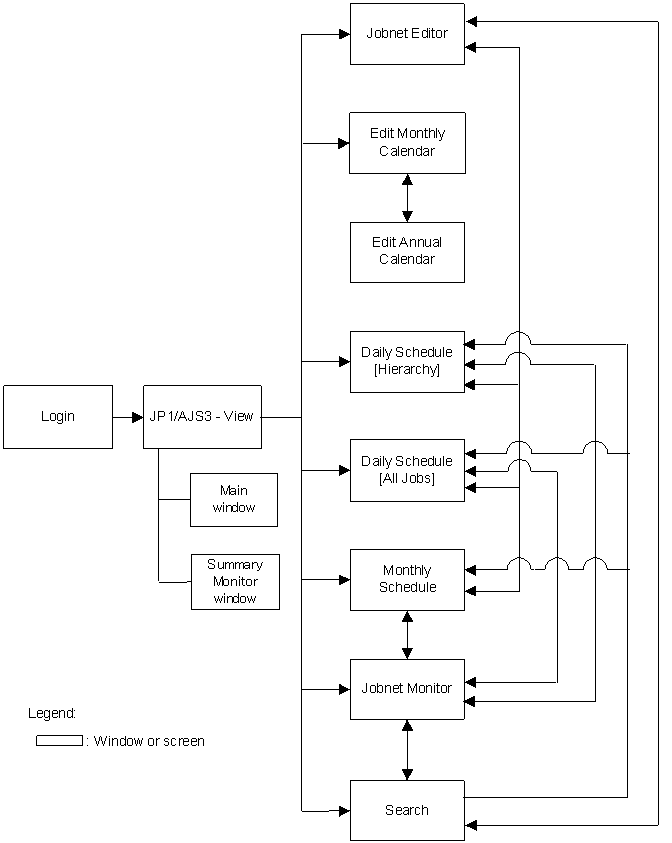

The following figure shows the relationships among the windows that JP1/AJS3 - View displays.

Figure 15-1 Transitions among windows

The following table lists the windows JP1/AJS3 - View displays.

Table 15-1 Windows

Window Description

Login screen Logs in to JP1/AJS3 - Manager.

JP1/AJS3 - View window

Defines a job group, a planning group, and a root jobnet.

Registers or deregisters a jobnet for execution.

Monitors the progress of a jobnet or a planning group.

Monitors the execution status and execution result of a jobnet.

Temporarily changes the schedule of a jobnet after it has started or cancels the changed schedule.

Cancels the execution of a jobnet or forcibly ends a jobnet.

Re-executes a jobnet.

Performs release entry or release cancel for a jobnet.

Jobnet Editor window Defines a jobnet.

Edit Monthly Calendar window Defines monthly calendar information about a job group.

Edit Annual Calendar window Defines Edit Annual Calendar information about a job group.

Daily Schedule [Hierarchy] window

Displays and edits a daily schedule for executing a jobnet, and displays a jobnet or job in the tree area.

Registers or deregisters a jobnet for execution.

Temporarily changes or cancels changes to the schedule of a running jobnet.

Stops or kills the execution of a jobnet.

Reruns a jobnet.

Daily Schedule [All Jobs] window

Displays and edits a daily schedule for executing a job, or displays all jobs under the particular job group or jobnet in the tree area.

Kills the execution of a job.

Reruns a job.

Monthly Schedule window

Displays and edits a monthly schedule for executing a jobnet.

Registers or deregisters a jobnet for execution.

Temporarily changes or cancels changes to the schedule of a running jobnet.

Stops or kills the execution of a jobnet.

Reruns a jobnet.

Jobnet Monitor window

Monitors the status and results of jobnet execution.

Temporarily changes or cancels changes to the schedule of a running jobnet.

Stops or kills the execution of a jobnet.

Reruns a jobnet.

Search window

Searches for a unit.

Temporarily changes or cancels changes to the schedule of a running jobnet.

Stops or kills the execution of a jobnet.

Reruns a jobnet.

Window	Description
Login screen	Logs in to JP1/AJS3 - Manager.
JP1/AJS3 - View window	Defines a job group, a planning group, and a root jobnet. Registers or deregisters a jobnet for execution. Monitors the progress of a jobnet or a planning group. Monitors the execution status and execution result of a jobnet. Temporarily changes the schedule of a jobnet after it has started or cancels the changed schedule. Cancels the execution of a jobnet or forcibly ends a jobnet. Re-executes a jobnet. Performs release entry or release cancel for a jobnet.
Jobnet Editor window	Defines a jobnet.
Edit Monthly Calendar window	Defines monthly calendar information about a job group.
Edit Annual Calendar window	Defines Edit Annual Calendar information about a job group.
Daily Schedule [Hierarchy] window	Displays and edits a daily schedule for executing a jobnet, and displays a jobnet or job in the tree area. Registers or deregisters a jobnet for execution. Temporarily changes or cancels changes to the schedule of a running jobnet. Stops or kills the execution of a jobnet. Reruns a jobnet.
Daily Schedule [All Jobs] window	Displays and edits a daily schedule for executing a job, or displays all jobs under the particular job group or jobnet in the tree area. Kills the execution of a job. Reruns a job.
Monthly Schedule window	Displays and edits a monthly schedule for executing a jobnet. Registers or deregisters a jobnet for execution. Temporarily changes or cancels changes to the schedule of a running jobnet. Stops or kills the execution of a jobnet. Reruns a jobnet.
Jobnet Monitor window	Monitors the status and results of jobnet execution. Temporarily changes or cancels changes to the schedule of a running jobnet. Stops or kills the execution of a jobnet. Reruns a jobnet.
Search window	Searches for a unit. Temporarily changes or cancels changes to the schedule of a running jobnet. Stops or kills the execution of a jobnet. Reruns a jobnet.
